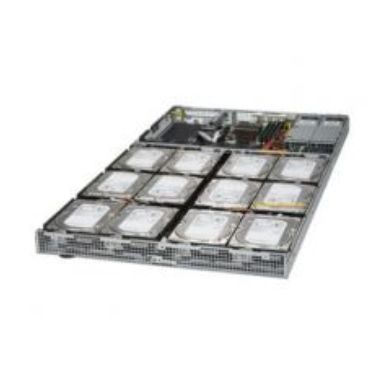

Supermicro SuperStorage Server 5018D4-AR12L
Out of Stock
|
Call For Price (0808 189 1246)
SPECIFICATIONS
Product Description
Supermicro SuperStorage Server 5018D4-AR12L - rack-mountable
Type
Server - rack-mountable
Height (Rack Units)
1U
Server Scalability
1-way
Processor
1 x Intel Xeon D-1518 / 2.2 GHz (Quad-Core)
Cache Memory
6 MB
Cache Per Processor
6 MB
Hard Drive
No HDD
Optical Storage
No optical drive
Graphics Controller
ASPEED AST2400
Networking
GigE 10 GigE
Power
AC 120/230 V (50 - 60 Hz)
Power Redundancy
Yes
OS Provided
No operating system
Dimensions (WxDxH)
17.2 in x 32 in x 1.7 in
General
Type
Server
Product Form Factor
Rack-mountable - 1U
Server Scalability
1-way
Internal Bays Qty
12
Processor / Chipset
CPU
Intel Xeon D-1518 / 2.2 GHz
Number of Cores
Quad-Core
CPU Qty
1
Max CPU Qty
1
Cache Memory
Installed Size
6 MB
Cache Per Processor
6 MB
RAM
Installed Size
0 GB / 128 GB (max)
Technology
DDR4 SDRAM
Form Factor
DIMM 288-pin
Slots
4 (total) / 4 (empty)
Features
Unbuffered registered
Hard Drive
Type
No HDD
Storage Controller
Type
1 x RAID
Controller Interface Type
SATA 6Gb/s
Channel Qty
4
RAID Level
RAID 0 RAID 1 RAID 5 RAID 10
Storage Controller (2nd)
Type
1 x SAS-2
Controller Interface Type
SAS 6Gb/s
Channel Qty
16
Optical Storage
Type
No optical drive
Monitor
Monitor Type
None.
Graphics Controller
Graphics Processor
ASPEED AST2400
Video Interfaces
VGA
Networking
Ethernet Ports
2 x Gigabit Ethernet 2 x SFP+
Remote Management Protocol
IPMI 2.0
Features
KVM over IP support
Expansion / Connectivity
Bays
12 (total) / 12 (free) x internal 3.5"
Miscellaneous
Cables Included
Mini SAS HD cable (3 pcs.)
Compliant Standards
RoHS ACPI 5.0
Power
Device Type
Power supply
Power Redundancy
Yes
Power Redundancy Scheme
1+1
Installed Qty
2
Max Supported Qty
2
Nominal Voltage
AC 120/230 V (50 - 60 Hz)
Power Provided
400 Watt
Operating System / Software
OS Provided
No operating system
Dimensions & Weight
Width
17.2 in
Depth
32 in
Height
1.7 in
Supermicro SuperStorage Server 5018D4-AR12L
| Length | 32 cm |
| Width | 17.2 cm |
| Height | 1.7 cm |
| Weight | 1.00 kgs |
