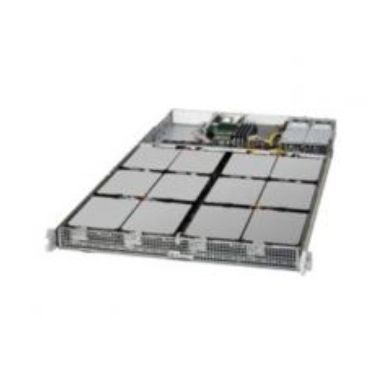

Supermicro SuperStorage Server 5019D8-TR12P (Complete System Only)
Out of Stock
|
Call For Price (0808 189 1246)
Processor
Built-in processor
Yes
Processor codename
Skylake
Maximum internal memory supported by processor
512 GB
Processor model
D-2146NT
Maximum cache
11 MB
Processor frequency
2.3 GHz
Processor socket
FCBGA2518
Processor family
Intel Xeon
Number of processors supported
1
Motherboard chipset
Intel SoC
ECC supported by processor
Yes
Design
80 PLUS certification
80 PLUS Platinum
Reset button
Yes
On/off switch
Yes
Number of fans
6 fan(s)
Fan diameter
1.57" (4 cm)
Certification
RoHS 80 Plus Platinum
Redundant fans support
Yes
Product colour
Black
Chassis type
Rack (1U)
Cooling type
Active
Memory
Supported RDIMM clock speeds
213324002666 MHz
Supported memory types
DDR4-SDRAMDDR4L-SDRAM
Supported DIMM module capacities
16GB 32GB 64GB 128GB
Number of DIMM slots
4
Memory voltage
1.2 V
Maximum RDIMM memory
512 GB
Maximum internal memory
512 GB
ECC
Yes
Storage
Number of storage drives supported
12
Number of 3.5" bays
12
Supported storage drive interfaces
M.2 Serial ATA III
Hot-swap HDD bays
Yes
Storage drive sizes supported
2.53.5"
Supported storage drive types
HDD & SSD
Performance
Trusted Platform Module (TPM) version
2
Trusted Platform Module (TPM)
Yes
Graphics
On-board graphics adapter model
Aspeed AST2500
Network
LAN controller
Intel I350-AM4 Intel X557
Ethernet LAN
Yes
Copper ethernet cabling technology
10GBASE-T
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
VGA (D-Sub) ports quantity
1
IPMI LAN (RJ-45) port
Yes
Ethernet LAN (RJ-45) ports
8
Expansion slots
PCI Express x8 (Gen 3.x) slots
1
Micro low profile PCI Express slots
1
PCI Express slots version
3
Number of M.2 (M) slots
1
Features
Trusted Platform Module (TPM) version
2
Trusted Platform Module (TPM)
Yes
Embedded options available
Yes
Technical details
Processor codename
Skylake
PCI Express x8 (Gen 3.x) slots
1
Number of storage drives supported
12
Number of 3.5" bays
12
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Maximum internal memory supported by processor
512 GB
Reset button
Yes
On/off switch
Yes
Number of fans
6 fan(s)
Fan diameter
1.57" (4 cm)
Certification
RoHS 80 Plus Platinum
Processor frequency
2.3 GHz
Trusted Platform Module (TPM) version
2
Trusted Platform Module (TPM)
Yes
Redundant fans support
Yes
CPU configuration (max)
1
Chassis type
Rack (1U)
Sustainability certificates
RoHS
Power
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Input current
0.25
DC output current (+5 V)
0.125
DC output current (+12 V)
33 A
Power supply
400 W
80 PLUS certification
80 PLUS Platinum
Thermal Design Power (TDP)
80 W
Colour
Product colour
Black
Processor special features
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
BIOS
BIOS features
PCI 3.0SMBIOS 2.8UEFI
BIOS type
UEFI AMI
BIOS memory size
128000 Mbit
ACPI version
5
UEFI version
2.4
System Management BIOS (SMBIOS) version
2.8
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
10 - 35 °C
Operating relative humidity (H-H)
8 - 90%
Weight & dimensions
Width
32" (813 mm)
Weight
32 lbs (14.5 kg)
Height
1.69" (43 mm)
Depth
17.2" (437 mm)
Supermicro SuperStorage Server 5019D8-TR12P (Complete System Only)
| Length | 43.69 cm |
| Width | 81.28 cm |
| Height | 4.29 cm |
| Weight | 14.51 kgs |
