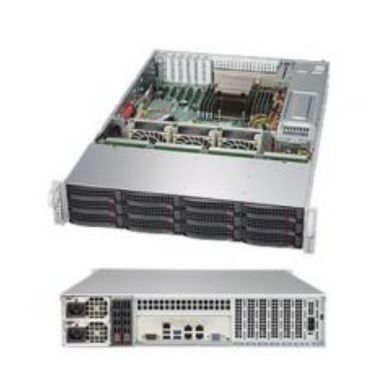

Supermicro SuperStorage Server 5028R-E1CR12L
Out of Stock
|
Call For Price (0808 189 1246)
SPECIFICATIONS
Product Description
Supermicro SuperStorage Server 5028R-E1CR12L - rack-mountable
Type
Server - rack-mountable
Height (Rack Units)
2U
Server Scalability
1-way
Processor
No CPU
Processor Socket
LGA2011-v3 Socket
Server Storage Bays
Hot-swap 3.5"
Hard Drive
No HDD
Optical Storage
No optical drive
Graphics Controller
ASPEED AST2400
Networking
GigE
Power
AC 120/230 V (50 - 60 Hz)
Power Redundancy
Yes
OS Provided
No operating system
Color
Black
Dimensions (WxDxH)
17.2 in x 25.5 in x 3.5 in
Weight
33.95 lbs
General
Type
Server
Product Form Factor
Rack-mountable - 2U
Server Scalability
1-way
Hot-Swap Bays Qty
12
Color
Black
Processor / Chipset
CPU
No CPU
Max CPU Qty
1
CPU Upgradability
Upgradable
CPU Socket
LGA2011-v3 Socket
Chipset Type
Intel C612
RAM
Installed Size
0 GB / 512 GB (max)
Technology
DDR4 SDRAM - ECC
Form Factor
DIMM 288-pin
Slots
8 (total) / 8 (empty)
Hard Drive
Type
No HDD
Storage Controller
Type
1 x RAID - integrated
Controller Interface Type
SAS 12Gb/s
Storage Controller Name
LSISAS3008
Channel Qty
8
RAID Level
RAID 0 RAID 1 RAID 10
Optical Storage
Type
No optical drive
Monitor
Monitor Type
None.
Graphics Controller
Type
Integrated
Graphics Processor
ASPEED AST2400
Video Interfaces
VGA
Networking
Type
Integrated
Ethernet Ports
4 x Gigabit Ethernet
Ethernet Controller
Intel I350-AM4
Remote Management Protocol
IPMI 2.0
Features
KVM over IP support
Expansion / Connectivity
Bays
12 (total) / 12 (free) x hot-swap 3.5"
Miscellaneous
Included Accessories
CPU Heatsink
Cables Included
Mini SAS HD cable (4 pcs.)
Power
Device Type
Power supply
Power Redundancy
Yes
Power Redundancy Scheme
1+1
Installed Qty
2
Max Supported Qty
2
Voltage Required
AC 120/230 V (50 - 60 Hz)
Power Provided
920 Watt
80 PLUS Certification
80 PLUS Platinum
Operating System / Software
OS Provided
No operating system
Dimensions & Weight
Width
17.2 in
Depth
25.5 in
Height
3.5 in
Weight
33.95 lbs
Supermicro SuperStorage Server 5028R-E1CR12L
| Length | 34.2 cm |
| Width | 26.5 cm |
| Height | 11.2 cm |
| Weight | 15.40 kgs |
