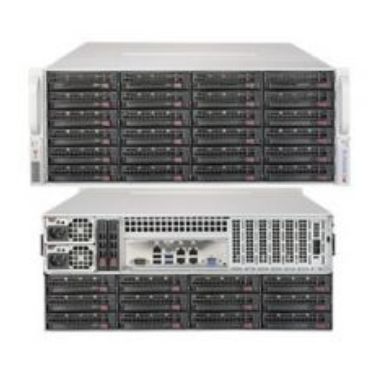

Supermicro SuperStorage Server 5048R-E1CR36L

Intelligent Platform Management Interface (IPMI) support

Yes

System bus type

QuickPath Interconnect (QPI)

Maximum cache

45 MB

Processor socket

LGA 2011 (Socket R)

Processor family

Intel

Number of processors supported

1

Motherboard chipset

Intel C612

Intel Xeon series

E5-1600E5-2600

Compatible processor series

Intel Xeon

Memory bus

72 bit

Supported RDIMM clock speeds

2133 MHz

Supported memory types

DDR4-SDRAM

Supported DIMM module capacities

16GB 32GB 4GB 8GB

Number of DIMM slots

8

Memory voltage

1.2 V

Memory form factor

288-pin DIMM

Maximum RDIMM memory

256 GB

Maximum internal memory

512 GB

ECC

Yes

Number of storage drives supported

36

Supported storage drive interfaces

Serial Attached SCSI (SAS)

RAID levels

0110

Hot-swap HDD bays

Yes

Storage drive sizes supported

3.5"

Trusted Platform Module (TPM) version

1.2

Trusted Platform Module (TPM)

Yes

Intelligent Platform Management Interface (IPMI) support

Yes

On-board graphics adapter model

Aspeed AST2400

Ethernet LAN data rates

101001000 Mbit/s

Ethernet LAN

Yes

Ethernet interface type

Fast Ethernet Gigabit Ethernet

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

VGA (D-Sub) ports quantity

1

USB 2.0 ports quantity

2

Serial ports quantity

1

IPMI LAN (RJ-45) port

Yes

Ethernet LAN (RJ-45) ports

4

Number of SAS ports

8

PCI Express x8 slots

3

PCI Express x4 slots

3

PCI Express slots version

2.03.0

Trusted Platform Module (TPM) version

1.2

Trusted Platform Module (TPM)

Yes

Number of storage drives supported

36

Number of fans

7 fan(s)

Fan diameter

3.15" (8 cm)

Trusted Platform Module (TPM) version

1.2

Trusted Platform Module (TPM)

Yes

Redundant fans support

Yes

Chassis type

Rack (4U)

Sustainability certificates

RoHS

Product colour

Black

LED indicators

Yes

Intelligent Platform Management Interface (IPMI) support

Yes

BIOS type

EEPROM

BIOS memory size

128 Mbit

ACPI version

2

Number of fans

7 fan(s)

Fan diameter

3.15" (8 cm)

Redundant fans support

Yes

LED indicators

Yes

Product colour

Black

Chassis type

Rack (4U)

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

DC output current (+5 V)

0.16666666666667

DC output current (+12 V)

106.7 A

Number of redundant power supplies installed

1

Redundant power supply (RPS) support

Yes

Power supply

1280 W

Storage temperature (T-T)

-40 - 70 °C

Storage relative humidity (H-H)

5 - 95%

Operating temperature (T-T)

10 - 35 °C

Operating relative humidity (H-H)

8 - 90%

Width

17.2" (437 mm)

Weight

65.5 lbs (29.7 kg)

Height

7.01" (178 mm)

Depth

27.5" (699 mm)
