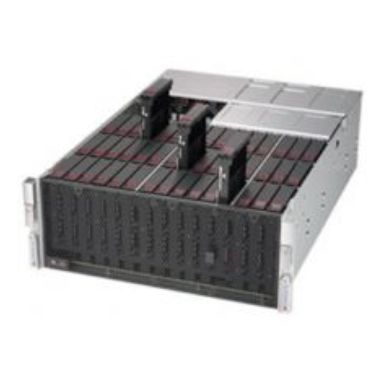

Supermicro SuperStorage Server 5049P-E1CR45H
In Stock
|
Call For Price
(0808 189 1246)
SPECIFICATIONS
Product Description
Supermicro SuperStorage Server 5049P-E1CR45H - rack-mountable
Type
Server - rack-mountable
Height (Rack Units)
4U
Server Scalability
1-way
Processor
No CPU
Processor Socket
Socket P
Server Storage Bays
Hot-swap 2.5" 3.5"
Hard Drive
No HDD
Optical Storage
No optical drive
Graphics Controller
ASPEED AST2500
Networking
GigE
Power
AC 120/230 V (50 - 60 Hz)
Power Redundancy
Yes
OS Provided
No operating system
Color
Black
Dimensions (WxDxH)
17.2 in x 26 in x 7 in
Weight
85.01 lbs
General
Type
Server
Product Form Factor
Rack-mountable - 4U
Server Scalability
1-way
Hot-Swap Bays Qty
47
Color
Black
Processor / Chipset
CPU
No CPU
Max CPU Qty
1
CPU Upgradability
Upgradable
CPU Socket
Socket P
Chipset Type
Intel C621
Motherboard Name
Supermicro X11SPL-F
RAM
Installed Size
0 GB / 2 TB (max)
Technology
DDR4 SDRAM - ECC
Form Factor
DIMM 288-pin
Slots
8 (total) / 8 (empty)
Hard Drive
Type
No HDD
Storage Controller
Type
1 x RAID
Controller Interface Type
SAS 12Gb/s
Storage Controller Name
Broadcom SAS3108
Storage Controller (2nd)
Type
1 x RAID
Controller Interface Type
SATA 6Gb/s
RAID Level
RAID 0 RAID 1 RAID 5 RAID 10
Optical Storage
Type
No optical drive
Monitor
Monitor Type
None.
Graphics Controller
Graphics Processor
ASPEED AST2500
Video Interfaces
VGA
Networking
Ethernet Ports
2 x Gigabit Ethernet
Ethernet Controller
Intel I210
Remote Management Protocol
IPMI 2.0
Features
KVM over IP support
Miscellaneous
Included Accessories
CPU Heatsink
Compliant Standards
RoHS
Power
Device Type
Power supply
Power Redundancy
Yes
Power Redundancy Scheme
1+1
Installed Qty
2
Max Supported Qty
2
Voltage Required
AC 120/230 V (50 - 60 Hz)
Power Provided
1600 Watt
80 PLUS Certification
80 PLUS Platinum
Efficiency
0.94
Operating System / Software
OS Provided
No operating system
Dimensions & Weight
Width
17.2 in
Depth
26 in
Height
7 in
Weight
85.01 lbs
Supermicro SuperStorage Server 5049P-E1CR45H
| Length | 26 cm |
| Width | 17.2 cm |
| Height | 7 cm |
| Weight | 1.000000 kgs |
