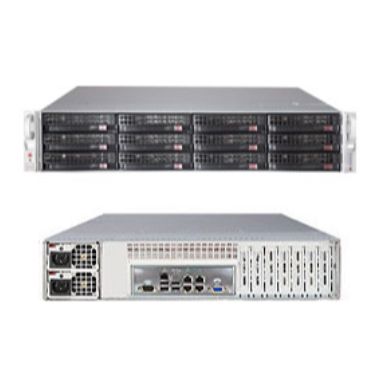

Supermicro SuperStorage Server 6027R-E1CR12L
0 Reviews
| Add your review
In Stock
|
£2370.38
£2844.46 (Inc. VAT)
| Hard drive | |
|---|---|
| Hot-swap HDD bays | Yes |
| Processor | |
| Built-in processor | No |
| Maximum cache | 30 MB |
| System bus rate | 8 GT/s |
| Processor socket | LGA 2011 (Socket R) |
| Number of processors supported | 2 |
| Motherboard chipset | Intel® C602J |
| Intel Xeon series | E5-2600 |
| Compatible processor series | Intel® Xeon® |
| Design | |
| 80 PLUS certification | 80 PLUS Platinum |
| Reset button | Yes |
| On/off switch | Yes |
| Number of fans | 3 fan(s) |
| Fan diameter | 8 cm |
| Product colour | Black |
| Chassis type | Rack (2U) |
| Memory | |
| Memory bus | 72 bit |
| Supported memory types | DDR3-SDRAM |
| Number of DIMM slots | 16 |
| Memory voltage | 1.35-1.5 V |
| Memory form factor | 240-pin DIMM |
| Maximum UDIMM memory | 128 GB |
| Maximum RDIMM memory | 512 GB |
| Maximum internal memory | 1000 GB |
| ECC | Yes |
| Storage | |
| Number of storage drives supported | 12 |
| Hot-swap HDD bays | Yes |
| Storage drive sizes supported | 3.5" |
| Graphics | |
| On-board graphics adapter model | Matrox G200eW |
| Network | |
| LAN controller | Intel® I350 |
| Ethernet LAN data rates | 10-100-1000 Mbit/s |
| Ethernet LAN | Yes |
| Ports & interfaces | |
| Number of SATA III connectors | 2 |
| Number of SATA II connectors | 4 |
| VGA (D-Sub) ports quantity | 1 |
| USB 2.0 ports quantity | 9 |
| Serial ports quantity | 1 |
| IPMI LAN (RJ-45) port | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Number of SAS ports | 8 |
| Expansion slots | |
| PCI Express x8 slots | 6 |
| PCI Express slots version | 3 |
| Technical details | |
| Number of storage drives supported | 12 |
| Reset button | Yes |
| On/off switch | Yes |
| Number of fans | 3 fan(s) |
| Fan diameter | 8 cm |
| Chassis type | Rack (2U) |
| Colour | |
| Product colour | Black |
| Indication | |
| BIOS | |
| BIOS type | AMI |
| BIOS memory size | 16 Mbit |
| ACPI version | 1.0 / 2.0 |
| System Management BIOS (SMBIOS) version | 2.3 |
| Plug and Play | Yes |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 4.5 - 11 A |
| DC output current (+5 V) | 0.16666666666667 |
| DC output current (+12 V) | 75 A |
| Redundant power supply (RPS) support | Yes |
| Power supply | 920 W |
| 80 PLUS certification | 80 PLUS Platinum |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 8 - 90% |
| Weight & dimensions | |
| Width | 437 mm |
| Height | 89 mm |
| Depth | 648 mm |
| Package weight | 27.7 kg |
