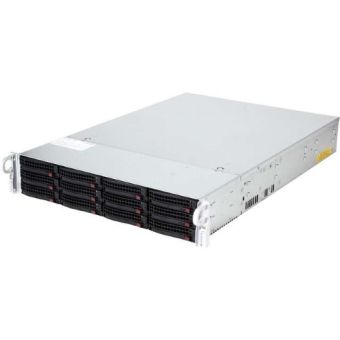

Supermicro SuperStorage Server 6027R-E1R12L
In Stock
|
£2257.81
£2709.37 (Inc. VAT)
get it next day (UK Mainland Orders)
Supermicro SuperStorage Server 6027R-E1R12L
Write Your Own Review
Hard drive
RAID levels
0-1-5-10
Hot-swap HDD bays
Yes
Management features
Processor
Maximum cache
30 MB
System bus rate
8 GT/s
Processor socket
LGA 2011 (Socket R)
Processor family
Intel
Number of processors supported
2
Motherboard chipset
Intel® C602J
Intel Xeon series
E5-2600
Compatible processor series
Intel® Xeon®
Memory
Memory bus
72 bit
Supported memory types
DDR3-SDRAM
Number of DIMM slots
16
Memory voltage
1.35-1.5 V
Memory form factor
240-pin DIMM
Maximum UDIMM memory
128 GB
Maximum RDIMM memory
512 GB
Maximum internal memory
1000 GB
ECC
Yes
Storage
Number of storage drives supported
14
RAID levels
0-1-5-10
Hot-swap HDD bays
Yes
Storage drive sizes supported
2.5-3.5"
Storage controller
LSI SAS2308
Performance
Integrated BMC with IPMI
Yes
Backplanes support
Yes
Graphics
On-board graphics adapter model
Matrox G200eW
Network
Ethernet LAN data rates
10-100-1000 Mbit/s
Ethernet LAN
Yes
Ports & interfaces
Number of SATA III connectors
2
Number of SATA II connectors
4
VGA (D-Sub) ports quantity
1
USB 2.0 ports quantity
9
Serial ports quantity
1
IPMI LAN (RJ-45) port
Yes
Ethernet LAN (RJ-45) ports
4
Number of SAS ports
8
Expansion slots
PCI Express x8 slots
5
PCI Express slots version
3
Features
Integrated BMC with IPMI
Yes
Backplanes support
Yes
Technical details
Number of storage drives supported
14
On/off switch
Yes
Number of fans
3 fan(s)
Fan diameter
8 cm
Certification
80 PLUS Platinum
Rack-Friendly board
Yes
Integrated BMC with IPMI
Yes
Chassis type
Rack (2U)
Backplanes support
Yes
Sustainability certificates
RoHS
Colour
Product colour
Black
Processor special features
BIOS
BIOS type
AMI
BIOS memory size
16 Mbit
ACPI version
2
Design
On/off switch
Yes
Number of fans
3 fan(s)
Fan diameter
8 cm
Certification
80 PLUS Platinum
Rack-Friendly board
Yes
Product colour
Black
Chassis type
Rack (2U)
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Input current
4.5 - 11 A
DC output current (+12 V)
75 A
Redundant power supply (RPS) support
Yes
Power supply
920 W
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
10 - 35 °C
Operating relative humidity (H-H)
8 - 90%
Weight & dimensions
Width
437 mm
Height
89 mm
Depth
648 mm
| Weight | 1.00 kgs |
