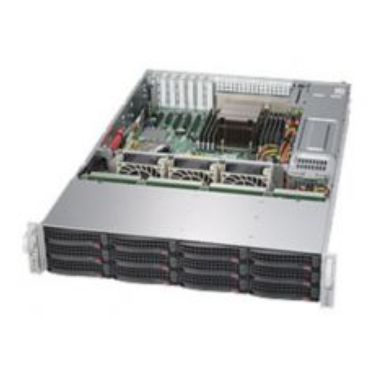

Supermicro SuperStorage Server 6028R-E1CR12L
In Stock
|
Call For Price
(0808 189 1246)
 SPECIFICATIONS
Product Description
Supermicro SuperStorage Server 6028R-E1CR12L - rack-mountable
Type
Server - rack-mountable - UEFI BIOS
Height (Rack Units)
2U
Server Scalability
2-way
Processor
No CPU
Processor Socket
LGA2011-v3 Socket
Server Storage Bays
Hot-swap 3.5"
Hard Drive
No HDD
Optical Storage
No optical drive
Graphics Controller
ASPEED AST2400
Networking
GigE 10 GigE
Power
AC 120/230 V (50/60 Hz)
Power Redundancy
Yes
OS Provided
No operating system
Color
Black
Dimensions (WxDxH)
17.2 in x 25.5 in x 3.5 in
Weight
33.95 lbs
General
Type
Server
Product Form Factor
Rack-mountable - 2U
Server Scalability
2-way
Hot-Swap Bays Qty
12
Color
Black
Processor / Chipset
CPU
No CPU
Max CPU Qty
2
CPU Upgradability
Upgradable
CPU Socket
LGA2011-v3 Socket
Chipset Type
Intel C612
RAM
Installed Size
0 GB / 1 TB (max)
Technology
DDR4 SDRAM - ECC
Form Factor
DIMM 288-pin
Slots
16 (total) / 16 (empty)
Hard Drive
Type
No HDD
Storage Controller
Type
1 x SAS-3 - plug-in card
Controller Interface Type
SAS 12Gb/s
Storage Controller Name
LSISAS3008
Channel Qty
8
Storage Controller (2nd)
Type
1 x RAID - integrated
Controller Interface Type
SATA 6Gb/s
RAID Level
RAID 0 RAID 1 RAID 5 RAID 10
Optical Storage
Type
No optical drive
Monitor
Monitor Type
None.
Graphics Controller
Type
Integrated
Graphics Processor
ASPEED AST2400
Video Interfaces
VGA
Networking
Type
Integrated
Ethernet Ports
2 x 10 Gigabit Ethernet
Ethernet Controller
Intel X540
Remote Management Protocol
IPMI 2.0
Features
ACPI support KVM over IP support
Expansion / Connectivity
Bays
12 (total) / 12 (free) x hot-swap 3.5"
Miscellaneous
Included Accessories
2 x CPU Heatsink
Cables Included
Mini SAS HD cable (4 pcs.)
Features
UEFI BIOS
Compliant Standards
Plug and Play ACPI 2.0 APM 1.2 RoHS
Power
Device Type
Power supply
Power Redundancy
Yes
Power Redundancy Scheme
1+1
Installed Qty
2
Max Supported Qty
2
Voltage Required
AC 120/230 V (50/60 Hz)
Power Provided
920 Watt
80 PLUS Certification
80 PLUS Platinum
Operating System / Software
OS Provided
No operating system
Dimensions & Weight
Width
17.2 in
Depth
25.5 in
Height
3.5 in
Weight
33.95 lbs
Supermicro SuperStorage Server 6028R-E1CR12L
| Length | 34 cm |
| Width | 26.5 cm |
| Height | 11 cm |
| Weight | 1.000000 kgs |
