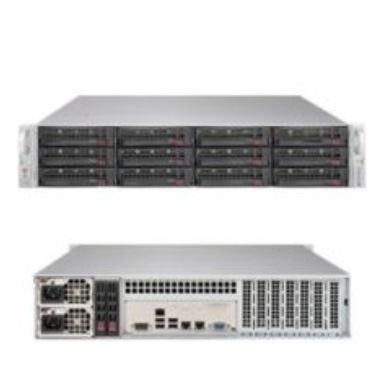

Supermicro SuperStorage Server 6029P-E1CR12L
Out of Stock
|
Call For Price (0808 189 1246)
Management features
PC health monitoring
CPU Fan Temperature Voltage
Intelligent Platform Management Interface (IPMI) support
Yes
Processor
Built-in processor
No
System bus rate
10.4 GT/s
Processor socket
LGA 3647 (Socket P)
Processor family
Intel Xeon
Number of processors supported
2
Compatible processor series
Intel Xeon
Design
80 PLUS certification
80 PLUS Titanium
On/off switch
Yes
Number of fans
3 fan(s)
Fan diameter
3.15" (8 cm)
LED indicators
Yes
Product colour
Black
Chassis type
Rack (2U)
Memory
Supported RDIMM clock speeds
213324002666 MHz
Supported memory types
DDR4-SDRAM
Number of DIMM slots
16
Memory voltage
1.2 V
Maximum RDIMM memory
2048 GB
Maximum internal memory
2048 GB
ECC
Yes
Storage
Number of storage drives supported
12
Number of 3.5" bays
12
RAID levels
01510
Hot-swap HDD bays
Yes
Storage drive sizes supported
3.5"
Performance
Intelligent Platform Management Interface (IPMI) support
Yes
Graphics
On-board graphics adapter model
Aspeed AST2500
Network
LAN controller
Intel X557 Intel X722
Ethernet LAN data rates
10000 Mbit/s
Ethernet LAN
Yes
Ethernet interface type
10 Gigabit Ethernet
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
5
VGA (D-Sub) ports quantity
1
Serial ports quantity
1
IPMI LAN (RJ-45) port
Yes
Ethernet LAN (RJ-45) ports
3
Expansion slots
PCI Express x8 (Gen 3.x) slots
4
PCI Express x16 (Gen 3.x) slots
3
Technical details
PCI Express x8 (Gen 3.x) slots
4
PCI Express x16 (Gen 3.x) slots
3
Number of storage drives supported
12
Number of 3.5" bays
12
On/off switch
Yes
Number of fans
3 fan(s)
Fan diameter
3.15" (8 cm)
Chassis type
Rack (2U)
Sustainability certificates
RoHS
Colour
Product colour
Black
Indication
LED indicators
Yes
Processor special features
Intelligent Platform Management Interface (IPMI) support
Yes
BIOS
BIOS type
UEFI AMI
BIOS memory size
32 Mbit
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
DC output current (+12 V)
100 A
Number of redundant power supplies installed
2
Number of redundant power supplies supported
2
Redundant power supply (RPS) support
Yes
Power supply
1200 W
80 PLUS certification
80 PLUS Titanium
Operational conditions
Storage temperature (T-T)
-40 - 60 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
10 - 35 °C
Operating relative humidity (H-H)
8 - 90%
Weight & dimensions
Width
17.2" (437 mm)
Height
3.5" (89 mm)
Depth
24.8" (630 mm)
Supermicro SuperStorage Server 6029P-E1CR12L
| Length | 34.5 cm |
| Width | 26.5 cm |
| Height | 11.4 cm |
| Weight | 1.00 kgs |
