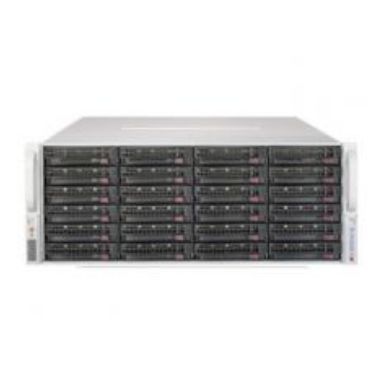

Supermicro SuperStorage Server 6048R-E1CR36L
In Stock
|
Call For Price
(0808 189 1246)
SPECIFICATIONS
Product Description
Supermicro SuperServer 6048R-E1CR36L - rack-mountable
Height (Rack Units)
4U
Server Scalability
2-way
Processor
No CPU
Processor Socket
LGA2011-v3 Socket
Server Storage Bays
Hot-swap 3.5"
Hard Drive
No HDD
Optical Storage
No optical drive
Graphics Controller
ASPEED AST2400
Networking
GigE 10 GigE
Power
AC 120/230 V (50/60 Hz)
Color
Black
Dimensions (WxDxH)
17.2 in x 27.5 in x 11.7 in
General
Type
Server
Product Form Factor
Rack-mountable - 4U
Server Scalability
2-way
Hot-Swap Bays Qty
36
Color
Black
Processor / Chipset
CPU
No CPU
Max CPU Qty
2
CPU Upgradability
Upgradable
CPU Socket
LGA2011-v3 Socket
Chipset Type
Intel C612
RAM
Installed Size
0 GB / 1 TB (max)
Technology
DDR4 SDRAM
Form Factor
DIMM 288-pin
Slots
16 (total) / 16 (empty)
Hard Drive
Type
No HDD
Storage Controller
Type
RAID - plug-in card
Controller Interface Type
SAS 12Gb/s
Storage Controller Name
LSISAS3008
RAID Level
RAID 0 RAID 1 RAID 5 RAID 10
Storage Controller (2nd)
Type
1 x SATA - integrated
Controller Interface Type
SATA 6Gb/s
RAID Level
RAID 0 RAID 1 RAID 5 RAID 10
Optical Storage
Type
No optical drive
Monitor
Monitor Type
None.
Graphics Controller
Type
Integrated
Graphics Processor
ASPEED AST2400
Video Interfaces
VGA
Networking
Type
Integrated
Ethernet Ports
2 x 10 Gigabit Ethernet
Ethernet Controller
Intel X540
Remote Management Protocol
IPMI 2.0
Expansion / Connectivity
Miscellaneous
Included Accessories
2 x CPU Heatsink
Cables Included
Mini SAS HD cable (6 pcs.)
Power
Device Type
Power supply
Installed Qty
1
Voltage Required
AC 120/230 V (50/60 Hz)
Power Provided
1280 Watt
80 PLUS Certification
80 PLUS Platinum
Dimensions & Weight
Width
17.2 in
Depth
27.5 in
Height
11.7 in
Supermicro SuperStorage Server 6048R-E1CR36L
| Length | 39 cm |
| Width | 27 cm |
| Height | 14 cm |
| Weight | 1.000000 kgs |
