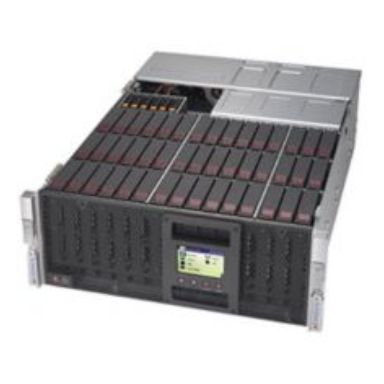

Supermicro SuperStorage Server 6049P-E1CR45L
In Stock
|
Call For Price
(0808 189 1246)
Management features
PC health monitoring
CPU Fan Temperature
Processor
Built-in processor
No
System bus rate
10.4 GT/s
Processor socket
LGA 3647 (Socket P)
Processor family
Intel Xeon Scalable
Number of processors supported
2
Motherboard chipset
Intel C621
Processor manufacturer
Intel
Design
80 PLUS certification
80 PLUS Platinum
Reset button
Yes
On/off switch
Yes
Number of fans
5 fan(s)
Fan diameter
3.15" (8 cm)
Certification
FCC CE RCM VCCI UL and CB
LED indicators
Yes
Product colour
Black
Chassis type
Rack (4U)
Hot-swap fan module
Yes
Cooling type
Active
Memory
Supported RDIMM clock speeds
2133240026662933 MHz
Supported memory types
DDR4-SDRAM
Number of DIMM slots
24
Maximum RDIMM memory
6000 GB
Maximum internal memory
6000 GB
Storage
Number of storage drives supported
47
Number of 3.5" bays
45
Number of 2.5" bays
2
RAID levels
01510
Hot-swap HDD bays
Yes
Storage drive sizes supported
2.53.5"
Performance
PC health monitoring
CPU Fan Temperature
Graphics
On-board graphics adapter model
Aspeed AST2500
Network
Ethernet LAN
Yes
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
VGA (D-Sub) ports quantity
1
IPMI LAN (RJ-45) port
Yes
Ethernet LAN (RJ-45) ports
1
Expansion slots
PCI Express slots version
3
Features
PC health monitoring
CPU Fan Temperature
Technical details
Number of storage drives supported
47
Number of 3.5" bays
45
Number of 2.5" bays
2
Reset button
Yes
On/off switch
Yes
Number of fans
5 fan(s)
Fan diameter
3.15" (8 cm)
Certification
FCC CE RCM VCCI UL and CB
Chassis type
Rack (4U)
Sustainability certificates
RoHS
Power
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Input current
9.5 - 12.9 A
DC output current (+12 V)
132 A
Power supply
1600 W
80 PLUS certification
80 PLUS Platinum
Colour
Product colour
Black
Indication
LED indicators
Yes
Processor special features
Intel Optane⢠Memory Ready
Yes
BIOS
BIOS type
UEFI AMI
Operational conditions
Storage temperature (T-T)
-40 - 60 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
10 - 35 °C
Operating relative humidity (H-H)
8 - 90%
Weight & dimensions
Width
17.2" (437 mm)
Weight
85.1 lbs (38.6 kg)
Height
7.01" (178 mm)
Depth
26" (660 mm)
Supermicro SuperStorage Server 6049P-E1CR45L
| Length | 66.00 cm |
| Width | 43.70 cm |
| Height | 17.80 cm |
| Weight | 38.600000 kgs |
