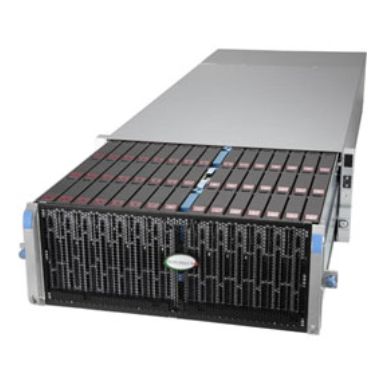

Supermicro Superserver 6049SP-E1CR90
In Stock
|
Call For Price
(0808 189 1246)
Processor
Processor manufacturer
Intel
Motherboard chipset
Intel® C621
Intelligent Platform Management Interface (IPMI) support
Yes
Processor family
Intel® Xeon®
Memory
Memory slots
16
Memory clock speed
2933 MHz
Maximum internal memory
4000 GB
Internal memory type
DDR4-SDRAM
ECC
Yes
Storage
Supported RAID controllers
Broadcom 3108
Number of SSDs supported
2
Hot-swap
Yes
Supported HDD sizes
2.5,3.5"
SSD interface
M.2, NVMe, SATA
RAID support
Yes
Optical drive type
No
Number of HDDs supported
90
HDD size
2.5/3.5"
HDD interface
SATA III, Serial Attached SCSI (SAS)
SSD size
2.5"
Supported SSD sizes
2.5"
NVMe
Yes
Graphics
On-board graphics card model
Aspeed AST2500
On-board graphics card
Yes
Network
Wi-Fi
No
LAN controller
Intel® X550
Ethernet LAN
Yes
Ethernet interface type
10 Gigabit Ethernet
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
VGA (D-Sub) ports quantity
1
Serial ports quantity
1
Ethernet LAN (RJ-45) ports
2
Expansion slots
PCI Express x16 (Gen 3.x) slots
2
PCI Express x8 (Gen 3.x) slots
1
Optical drive
Optical drive type
No
Design
Rack mounting
Yes
Optical drive type
No
Chassis type
Rack (4U)
Product colour
Black
Performance
Trusted Platform Module (TPM)
No
Operating system installed
No
BIOS type
UEFI
Intelligent Platform Management Interface (IPMI) support
Yes
Software
Operating system installed
No
Processor special features
Intelligent Platform Management Interface (IPMI) support
Yes
Power
Redundant power supply (RPS) support
Yes
Power supply
2600 W
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
8 - 90%
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
10 - 35 °C
Certificates
Certification
80 PLUS Titanium Level
Technical details
Trusted Platform Module (TPM)
No
Supported HDD sizes
2.5,3.5"
Rack mounting
Yes
Intelligent Platform Management Interface (IPMI) support
Yes
Ethernet interface type
10 Gigabit Ethernet
BIOS type
UEFI
Chassis type
Rack (4U)
PCI Express x8 (Gen 3.x) slots
1
Weight & dimensions
Package weight
108.9 kg
Width
449 mm
Weight
68 kg
Height
177 mm
Depth
1091 mm
Packaging data
Package weight
108.9 kg
