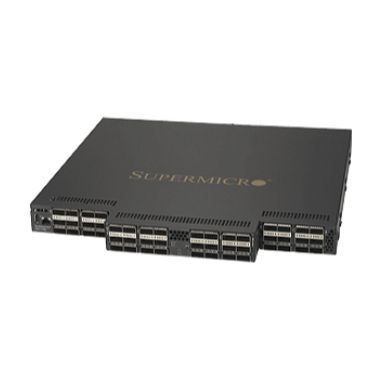

Supermicro Omni-Path 100G 48-port top-of-rack network switch

Supermicro Omni-Path 100G 48-port top-of-rack network switch

Engineered for demanding High Performance Computing (HPC), advanced data analytics, machine learning clusters, and enterprise-scale network fabrics, Supermicro Omni-Path switch UK is a 1U 48-port top-of-rack network switch delivering exceptional bandwidth, scalability, interconnect performance, latency, and message rate that is highly scalable and easily serviceable.

Key Features of Supermicro 100G Omni-Path top-of-rack switch UK:

• 48x 100 Gb/s ports - QSFP28

• Switching capacity 9.6 Tb/s total fabric bandwidth

• Maximum multicast table size: 8192 entries

• Maximum unicast table size: 49151 entries

• Out-of-band management card (SSH-C48QM only)

• Redundant hot-pluggable 750W Platinum Level power supplies

Here is a detailed breakdown of Supermicro SSH-C48Q in the UK.

100 Gbps Omni-Path Fabric:

Supermicro Omni-Path switch UK comes with 48-port 100Gbps, supporting Omni-Path Architecture, which leverages the Intel Scalable System Framework (SSF), allowing users to address evolving demands across high-performance data analytics, machine learning, visualization, traditional modeling, and simulation workloads.

Outstanding Performance for HPC and Beyond:

Supermicro Omni-Path switch has been designed specifically for HPC. It supports 9.6 Tb/s total fabric bandwidth and 100 Gbps connectivity across 48 QSFP28 ports, making it suitable for demanding applications that require high bandwidth and lower latency, such as scientific simulation, real-time analytics, and distributed machine learning training.

In addition, thanks to the capability of 27,648 nodes in a 2-tier configuration, it is a highly capable switch.

High Message Rate Throughput:

This high-performance computing switch UK features ever-increasing processing power and core counts of Intel® Xeon® Processor and Intel® Xeon Phi™ coprocessors, enabling it to offer high message rate traffic from each node through the fabric.

48-port Switch ASIC:

Intel Omni-Path Architecture switch is provided with a 48-port design, delivering improved fabric scalability, reduced latency, increased density, reduced cost, and lower power demand.

Robust Management & Reliability:

The 100Gbps Supermicro switch is provided with an extensive range of management capabilities, allowing network administrators to enjoy seamless deployment, troubleshooting, configuration, and control. For instance, it features the following capabilities:

• Out-of-band management card (SSH-C48QM only)

• Built-in Fabric Manager

• Subnet Management Agent (SMA)

• Performance Management Agent (PMA)

• Enables Command Line Interface and Chassis

• Management GUI through 10/100/1000 Base-T Ethernet

• Serial Console through USB Serial Port

• Embedded Subnet Manager (ESM) and

• Performance Manager (PM)

• Network Time Protocol (NTP),

• SNMP/MIBs, and LDAP

• FastFabric Toolset

• Fabric Management GUI
