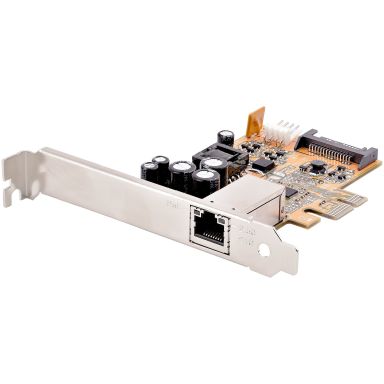

StarTech.com 1 Port 2.5Gbps PoE Network Card, PCIe Ethernet Card w/RJ45, 30W 802.3at PoE NIC for Desktops/Servers, Network PoE LAN Adapter w/Low-Profile Bracket, NBaseT, Windows/Linux
In Stock
|
$98.63
$118.36 (Inc. VAT)
Ports & interfaces
Internal
Yes
PCI version
2.1
Power over Ethernet (PoE) ports quantity
1
Ethernet LAN (RJ-45) ports
1
PCI Card form factor
Full-height (low-profile)
Interface
Ethernet
Host interface
PCI Express
Connectivity technology
Wired
Bandwidth
Full duplex
Yes
Maximum data transfer rate
2500 Mbit/s
Network
Chipset
Realtek RTL8125B
VLAN tagging
Yes
Ethernet interface type
2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Jumbo frames
16000
Ethernet LAN
Yes
Networking standards
IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u
Wake-on-LAN ready
Yes
Auto MDIX IEEE
Yes
Maximum operating distance
100 m
Jumbo frames support
Yes
Full duplex
Yes
Ethernet LAN data rates
10,100,1000,2500 Mbit/s
Maximum data transfer rate
2500 Mbit/s
Technical details
Wake-on-LAN ready
Yes
Auto MDIX IEEE
Yes
PCI Card form factor
Full-height (low-profile)
Sustainability compliance
Yes
Sustainability certificates
CE, RoHS
Compliance certificates
CE, RoHS
Design
Chipset
Realtek RTL8125B
Internal
Yes
PCI Card form factor
Full-height (low-profile)
LED indicators
Yes
Component for
PC/Server
Software
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Linux operating systems supported
Yes
Power
Output voltage
48 V
Indication
LED indicators
Yes
System requirements
Server operating systems supported
Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2019
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Linux operating systems supported
Yes
Operational conditions
Operating temperature (T-T)
0 - 55 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
5 - 95%
Sustainability
Sustainability compliance
Yes
Sustainability certificates
CE, RoHS
Weight & dimensions
Width
63 mm
Depth
95 mm
Height
15 mm
Weight
220 g
Package width
207 mm
Package depth
144 mm
Package height
38 mm
Package weight
220 g
Packaging data
Package width
207 mm
Package depth
144 mm
Package height
38 mm
Package weight
220 g
Mounting brackets included
Yes
Quick installation guide
Yes
Packaging content
Mounting brackets included
Yes
Quick installation guide
Yes
Performance
Server operating systems supported
Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2019
Wake-on-LAN ready
Yes
Auto MDIX IEEE
Yes
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Linux operating systems supported
Yes
Other features
Chipset
Realtek RTL8125B
Jumbo frames
16000
Logistics data
Master (outer) case width
530 mm
Master (outer) case length
440 mm
Master (outer) case height
340 mm
Products per master (outer) case
50 pc(s)
StarTech.com 1 Port 2.5Gbps PoE Network Card, PCIe Ethernet Card w/RJ45, 30W 802.3at PoE NIC for Desktops/Servers, Network PoE LAN Adapter w/Low-Profile Bracket, NBaseT, Windows/Linux
