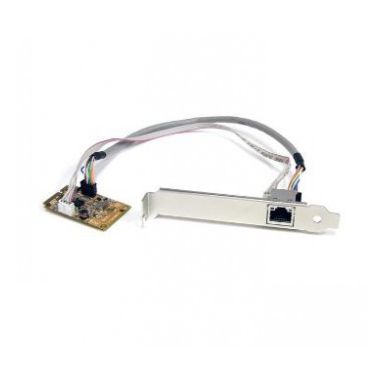

StarTech.com Mini PCI Express Gigabit Ethernet Network Adapter NIC Card

Internal

Yes

Ethernet LAN (RJ-45) ports

1

Interface

Ethernet

Host interface

Mini PCI Express

Connectivity technology

Wired

Full duplex

Yes

Maximum data transfer rate

1000 Mbit/s

Chipset

Realtek - RTL8111E

VLAN tagging

Yes

Jumbo frames

9000

Ethernet LAN

Yes

Networking standards

IEEE 802.1Q- IEEE 802.3- IEEE 802.3ab- IEEE 802.3u- IEEE 802.3x

Wake-on-LAN ready

Yes

Auto MDIX IEEE

Yes

Jumbo frames support

Yes

Full duplex

Yes

Ethernet LAN data rates

10-100-1000 Mbit/s

Maximum data transfer rate

1000 Mbit/s

Flow control support

Yes

Wake-on-LAN ready

Yes

Auto MDIX IEEE

Yes

Mean time between failures (MTBF)

482765 h

Harmonized System (HS) code

85176990

Sustainability certificates

RoHS

Chipset

Realtek - RTL8111E

Certification

CE- FCC

Internal

Yes

Mean time between failures (MTBF)

482765 h

LED indicators

Activity- Link

Windows operating systems supported

Windows 10- Windows 10 Education- Windows 10 Education x64- Windows 10 Enterprise- Windows 10 Enterprise x64- Windows 10 Home- Windows 10 Home x64- Windows 10 Pro- Windows 10 Pro x64- Windows 2000- Windows 2000 Professional- Windows 7- Windows 7 Enterprise- Windows 7 Enterprise x64- Windows 7 Home Basic- Windows 7 Home Basic x64- Windows 7 Home Premium- Windows 7 Home Premium x64- Windows 7 Professional- Windows 7 Professional x64- Windows 7 Starter- Windows 7 Starter x64- Windows 7 Ultimate- Windows 7 Ultimate x64- Windows 7 x64- Windows 8- Windows 8 Enterprise- Windows 8 Enterprise x64- Windows 8 Pro- Windows 8 Pro x64- Windows 8 x64- Windows 8.1- Windows 8.1 Enterprise- Windows 8.1 Enterprise x64- Windows 8.1 Pro- Windows 8.1 Pro x64- Windows 8.1 x64- Windows Vista- Windows Vista Business- Windows Vista Business x64- Windows Vista Enterprise- Windows Vista Enterprise x64- Windows Vista Home Basic- Windows Vista Home Basic x64- Windows Vista Home Premium- Windows Vista Home Premium x64- Windows Vista Ultimate- Windows Vista Ultimate x64- Windows Vista x64- Windows XP- Windows XP Home- Windows XP Home x64- Windows XP Professional- Windows XP Professional x64

Mac operating systems supported

Mac OS X 10.4 Tiger- Mac OS X 10.5 Leopard

Linux operating systems supported

Yes

LED indicators

Activity- Link

Server operating systems supported

Windows Server 2003- Windows Server 2008 R2- Windows Server 2012- Windows Server 2012 R2- Windows Server 2016- Windows Server 2019

Windows operating systems supported

Windows 10- Windows 10 Education- Windows 10 Education x64- Windows 10 Enterprise- Windows 10 Enterprise x64- Windows 10 Home- Windows 10 Home x64- Windows 10 Pro- Windows 10 Pro x64- Windows 2000- Windows 2000 Professional- Windows 7- Windows 7 Enterprise- Windows 7 Enterprise x64- Windows 7 Home Basic- Windows 7 Home Basic x64- Windows 7 Home Premium- Windows 7 Home Premium x64- Windows 7 Professional- Windows 7 Professional x64- Windows 7 Starter- Windows 7 Starter x64- Windows 7 Ultimate- Windows 7 Ultimate x64- Windows 7 x64- Windows 8- Windows 8 Enterprise- Windows 8 Enterprise x64- Windows 8 Pro- Windows 8 Pro x64- Windows 8 x64- Windows 8.1- Windows 8.1 Enterprise- Windows 8.1 Enterprise x64- Windows 8.1 Pro- Windows 8.1 Pro x64- Windows 8.1 x64- Windows Vista- Windows Vista Business- Windows Vista Business x64- Windows Vista Enterprise- Windows Vista Enterprise x64- Windows Vista Home Basic- Windows Vista Home Basic x64- Windows Vista Home Premium- Windows Vista Home Premium x64- Windows Vista Ultimate- Windows Vista Ultimate x64- Windows Vista x64- Windows XP- Windows XP Home- Windows XP Home x64- Windows XP Professional- Windows XP Professional x64

Mac operating systems supported

Mac OS X 10.4 Tiger- Mac OS X 10.5 Leopard

Linux operating systems supported

Yes

Operating temperature (T-T)

0 - 55 °C

Storage temperature (T-T)

-20 - 85 °C

Operating relative humidity (H-H)

5 - 95%

Sustainability certificates

RoHS

Width

30 mm

Depth

51 mm

Height

8 mm

Weight

6 g

Package width

144 mm

Package depth

175 mm

Package height

32 mm

Package weight

150 g

Drivers included

Yes

Low-profile bracket

Yes

Package width

144 mm

Package depth

175 mm

Package height

32 mm

Package weight

150 g

Quantity

1

Manual

Yes

Manual

Yes

Drivers included

Yes

Low-profile bracket

Yes

Quantity

1

Server operating systems supported

Windows Server 2003- Windows Server 2008 R2- Windows Server 2012- Windows Server 2012 R2- Windows Server 2016- Windows Server 2019

Wake-on-LAN ready

Yes

Auto MDIX IEEE

Yes

Windows operating systems supported

Windows 10- Windows 10 Education- Windows 10 Education x64- Windows 10 Enterprise- Windows 10 Enterprise x64- Windows 10 Home- Windows 10 Home x64- Windows 10 Pro- Windows 10 Pro x64- Windows 2000- Windows 2000 Professional- Windows 7- Windows 7 Enterprise- Windows 7 Enterprise x64- Windows 7 Home Basic- Windows 7 Home Basic x64- Windows 7 Home Premium- Windows 7 Home Premium x64- Windows 7 Professional- Windows 7 Professional x64- Windows 7 Starter- Windows 7 Starter x64- Windows 7 Ultimate- Windows 7 Ultimate x64- Windows 7 x64- Windows 8- Windows 8 Enterprise- Windows 8 Enterprise x64- Windows 8 Pro- Windows 8 Pro x64- Windows 8 x64- Windows 8.1- Windows 8.1 Enterprise- Windows 8.1 Enterprise x64- Windows 8.1 Pro- Windows 8.1 Pro x64- Windows 8.1 x64- Windows Vista- Windows Vista Business- Windows Vista Business x64- Windows Vista Enterprise- Windows Vista Enterprise x64- Windows Vista Home Basic- Windows Vista Home Basic x64- Windows Vista Home Premium- Windows Vista Home Premium x64- Windows Vista Ultimate- Windows Vista Ultimate x64- Windows Vista x64- Windows XP- Windows XP Home- Windows XP Home x64- Windows XP Professional- Windows XP Professional x64

Mac operating systems supported

Mac OS X 10.4 Tiger- Mac OS X 10.5 Leopard

Linux operating systems supported

Yes

Mean time between failures (MTBF)

482765 h

Certification

CE- FCC

Chipset

Realtek - RTL8111E

Manual

Yes

Jumbo frames

9000

Flow control support

Yes

Harmonized System (HS) code

85176990

Harmonized System (HS) code

85176990
