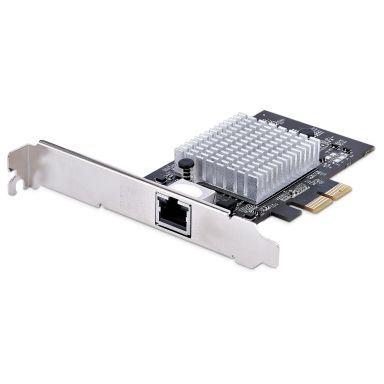

StarTech.com 1-Port 10Gbps PCIe Network Adapter Card, Network Card for PC/Server, Six-Speed PCIe Ethernet Card with Jumbo Frame Support, NIC/LAN Interface Card, 10GBASE-T and NBASE-T
In Stock
|
$174.74
$209.69 (Inc. VAT)
Ports & interfaces
Internal
Yes
PCI version
3.0
Ethernet LAN (RJ-45) ports
1
PCI Card form factor
Full-height (low-profile)
Interface
Ethernet
Host interface
PCIe
Connectivity technology
Wired
Bandwidth
Full duplex
Yes
Maximum data transfer rate
10000 Mbit/s
Technical details
Product colour
Black
Auto MDIX IEEE
Yes
PCI Card form factor
Full-height (low-profile)
Network
Ethernet interface type
2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Jumbo frames
16000
Ethernet LAN
Yes
Cabling technology
10GBase-T
Networking standards
IEEE 1588, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u
Auto MDIX IEEE
Yes
Jumbo frames support
Yes
Full duplex
Yes
Ethernet LAN data rates
10,100,1000,2500,5000,10000 Mbit/s
Maximum data transfer rate
10000 Mbit/s
Design
Product colour
Black
Internal
Yes
PCI Card form factor
Full-height (low-profile)
LED indicators
Yes
Component for
PC
Software
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Linux operating systems supported
Yes
Indication
LED indicators
Yes
System requirements
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Linux operating systems supported
Yes
Operational conditions
Operating temperature (T-T)
0 - 60 °C
Storage temperature (T-T)
-10 - 70 °C
Weight & dimensions
Width
107 mm
Depth
121 mm
Height
22 mm
Weight
70 g
Package width
210 mm
Package depth
145 mm
Package height
35 mm
Package weight
120 g
Packaging data
Package width
210 mm
Package depth
145 mm
Package height
35 mm
Package weight
120 g
Mounting brackets included
Yes
Quick installation guide
Yes
Packaging content
Mounting brackets included
Yes
Quick installation guide
Yes
Performance
Auto MDIX IEEE
Yes
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Linux operating systems supported
Yes
Logistics data
Master (outer) case width
445 mm
Master (outer) case length
375 mm
Master (outer) case height
320 mm
Products per master (outer) case
40 pc(s)
Other features
Jumbo frames
16000
StarTech.com 1-Port 10Gbps PCIe Network Adapter Card, Network Card for PC/Server, Six-Speed PCIe Ethernet Card with Jumbo Frame Support, NIC/LAN Interface Card, 10GBASE-T and NBASE-T
