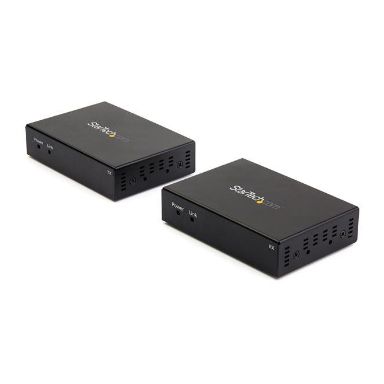

StarTech.com HDMI over CAT6 Extender - 4K 60Hz - 330 ft. (100 m)

Material

Metal

HDCP

Yes

Audio output channels

7.1 channels

Maximum refresh rate

60 Hz

Type

AV transmitter & receiver

Maximum resolution

3840 x 2160 pixels

Cable types supported

Cat6

Maximum transfer distance

140 m

Supported graphics resolutions

1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA)

LED indicators

Link, Power

Product colour

Black

Chipset

Norelsys NS 5730, NS5731

HDCP version

1.4/2.2

Material

Metal

HDCP

Yes

Audio output channels

7.1 channels

Maximum refresh rate

60 Hz

Type

AV transmitter & receiver

Maximum resolution

3840 x 2160 pixels

Cable types supported

Cat6

Maximum transfer distance

140 m

Supported graphics resolutions

1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA)

Product colour

Black

Connectivity technology

Wired

Remote (IR) output

2

Remote (IR) input

2

Serial ports quantity

2

RJ-45 input ports

1

RJ-45 output ports

1

HDMI in

1

Number of HDMI outputs

1

DC-in jack

Yes

Connectivity technology

Wired

Output current

2 A

Power plug type

Type M

AC input voltage

110 - 240 V

External power adapter

Yes

Operating voltage

5 V

LED indicators

Link, Power

Operating relative humidity (H-H)

0 - 95%

Storage temperature (T-T)

-15 - 55 °C

Operating temperature (T-T)

-5 - 40 °C

Width

111 mm

Package depth

185 mm

Height

26 mm

Depth

76 mm

Package width

248 mm

Package height

95 mm

Weight

271 g

Package weight

1.42 kg

Package depth

185 mm

Package width

248 mm

Package height

95 mm

Package weight

1.42 kg

Mounting brackets included

Yes

Cables included

LAN (RJ-45)

Quick start guide

Yes

AC adapter included

Yes

Included power plug types

ANZ, EU, JP, NA, UK

Master (outer) case width

520 mm

Master (outer) case length

420 mm

Master (outer) case height

280 mm

Products per master (outer) case

10 pc(s)
