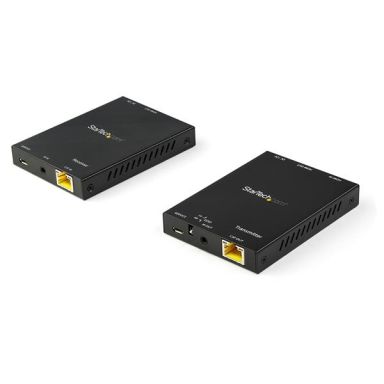

StarTech.com HDMI over CAT6 Extender Kit - 4K 60Hz

HDCP

Yes

Audio output channels

7.1 channels

Maximum refresh rate

60 Hz

Certification

CE, FCC, REACH

Type

AV transmitter & receiver

Maximum resolution

3840 x 2160 pixels

Cable types supported

Cat6

Maximum transfer distance

50 m

Supported graphics resolutions

1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160

Product colour

Black

HDCP version

2.2

HDCP

Yes

Audio output channels

7.1 channels

Maximum refresh rate

60 Hz

Certification

CE, FCC, REACH

Type

AV transmitter & receiver

Maximum resolution

3840 x 2160 pixels

Cable types supported

Cat6

Maximum transfer distance

50 m

Supported graphics resolutions

1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160

Product colour

Black

Connectivity technology

Wired

Harmonized System (HS) code

85176200

Compliance certificates

RoHS

RJ-45 input ports

1

RJ-45 output ports

1

HDMI in

1

Number of HDMI outputs

2

HDMI version

2.0

Connectivity technology

Wired

Input current

0.3 A

Output current

1 A

Power plug type

Type M

Operating voltage (transmitter)

12 V

Operating voltage (receiver)

12 V

AC input voltage

100 - 240 V

Operating relative humidity (H-H)

0 - 80%

Storage temperature (T-T)

-20 - 60 °C

Operating temperature (T-T)

0 - 40 °C

Width

70 mm

Package depth

220 mm

Height

13 mm

Depth

97 mm

Package width

130 mm

Package height

70 mm

Weight

156 g

Package weight

777 g

Package depth

220 mm

Package width

130 mm

Package height

70 mm

Package weight

777 g

IR receiver included

Yes

IR blaster included

Yes

Quick start guide

Yes

Included power plug types

ANZ, EU, JP, NA, UK

Master (outer) case width

375 mm

Master (outer) case length

457 mm

Master (outer) case height

282 mm

Products per master (outer) case

20 pc(s)

Harmonized System (HS) code

85176200
