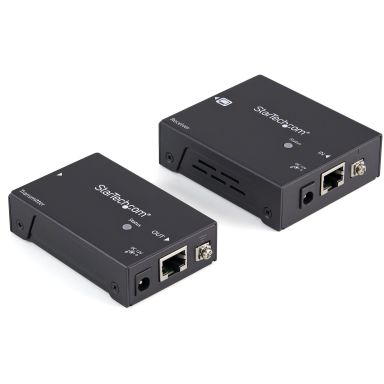

StarTech.com HDMI over CAT5 HDBaseT Extender - 4K
In Stock
|
Call For Price
(0808 189 1246)
Features
Material
Aluminium
Audio output channels
7.1 channels
Daisy chain
No
HDBaseT certified
Yes
Maximum refresh rate
60 Hz
Certification
CE- FCC- TAA
Type
AV transmitter & receiver
Maximum resolution
4096 x 2160 pixels
Cable types supported
Cat5e-Cat6
Maximum transfer distance
100 m
Audio system
Multichannel
Supported video modes
720p-1080p-2160p
Supported graphics resolutions
1280 x 720 (HD 720)-1920 x 1080 (HD 1080)-1920 x 1200 (WUXGA)-2560 x 1600 (WQXGA)-3840 x 2160-4096 x 2160
LED indicators
Status
Product colour
Black
Rubber feet
Yes
Technical details
Material
Aluminium
Audio output channels
7.1 channels
Daisy chain
No
HDBaseT certified
Yes
Maximum refresh rate
60 Hz
Certification
CE- FCC- TAA
Type
AV transmitter & receiver
Maximum resolution
4096 x 2160 pixels
Cable types supported
Cat5e-Cat6
Maximum transfer distance
100 m
Audio system
Multichannel
Supported video modes
720p-1080p-2160p
Supported graphics resolutions
1280 x 720 (HD 720)-1920 x 1080 (HD 1080)-1920 x 1200 (WUXGA)-2560 x 1600 (WQXGA)-3840 x 2160-4096 x 2160
Product colour
Black
Audio support
Yes
Sustainability certificates
RoHS
Ports & interfaces
RJ-45 input ports
1
RJ-45 output ports
1
HDMI in
1
Number of HDMI outputs
1
DC-in jack
Yes
Power
Input current
0.5 A
Output current
1.5 A
Power plug type
Type M
AC input voltage
100-240 V
Power consumption (typical)
18 W
External power adapter
Yes
Operating voltage
12 V
Indication
LED indicators
Status
Operational conditions
Operating relative humidity (H-H)
0 - 80%
Storage temperature (T-T)
-10 - 60 °C
Operating temperature (T-T)
0 - 40 °C
Weight & dimensions
Width
67 mm
Package depth
295 mm
Height
25 mm
Depth
80 mm
Package width
196 mm
Package height
72 mm
Weight
423 g
Package weight
1.2 kg
Packaging data
Package depth
295 mm
Package width
196 mm
Package height
72 mm
Package weight
1.2 kg
Packaging content
Mounting brackets included
Yes
Grounding wire
Yes
Cables included
LAN (RJ-45)
AC adapter included
Yes
Manual
Yes
Included power plug types
AU-EU-NA-UK
Logistics data
Master (outer) case width
40.5 cm
Master (outer) case length
45 cm
Master (outer) case height
32.5 cm
Products per master (outer) case
12 pc(s)
StarTech.com HDMI over CAT5 HDBaseT Extender - 4K
