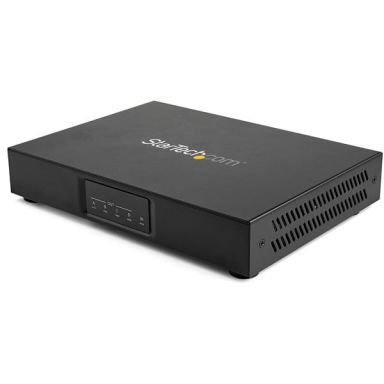

StarTech.com 2x2 Video Wall Controller - 4K 60Hz
In Stock
|
Call For Price (0808 189 1246)
Ports & interfaces
RJ-45 input ports
1
Video port type
HDMI
RS-232 ports
1
HDMI version
2.0
Number of HDMI outputs
4
HDMI in
1
DC-in jack
Yes
USB port type
USB Type-A
Features
Audio output channels
7.1 channels
Product colour
Black
Supported graphics resolutions
4096 x 2160
Maximum refresh rate
60 Hz
Material
Metal
LED indicators
Yes
HDCP
Yes
HDCP version
2.2
Extended display identification data (EDID)
Yes
Power
AC adapter input current
1 A
AC adapter output voltage
24 V
AC adapter output current
1.25 A
AC input voltage
100 - 240 V
Certificates
Certification
CE, FCC, REACH
Weight & dimensions
Width
165 mm
Height
45 mm
Depth
230 mm
Weight
1 kg
Package width
260 mm
Package height
70 mm
Package depth
300 mm
Package weight
1.6 kg
Technical details
Audio output channels
7.1 channels
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
20 - 90%
Width
165 mm
Height
45 mm
Depth
230 mm
Product colour
Black
Video port type
HDMI
Supported graphics resolutions
4096 x 2160
Maximum refresh rate
60 Hz
Material
Metal
LED indicators
Yes
HDMI version
2.0
HDCP
Yes
Harmonized System (HS) code
85176990
Compliance certificates
RoHS
Packaging data
Package width
260 mm
Package height
70 mm
Package depth
300 mm
Package weight
1.6 kg
Packaging content
Manual
Yes
AC adapter included
Yes
Operational conditions
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
20 - 90%
Logistics data
Products per master (outer) case
10 pc(s)
Master (outer) case width
315 mm
Master (outer) case length
545 mm
Master (outer) case height
380 mm
Harmonized System (HS) code
85176990
StarTech.com 2x2 Video Wall Controller - 4K 60Hz
| Length | 23.00 cm |
| Width | 16.50 cm |
| Height | 4.50 cm |
| Weight | 1.60 kgs |
