Ports & interfaces | |
---|---|
Internal | Yes |
Ethernet LAN (RJ-45) ports | 2 |
Interface | Ethernet |
Host interface | PCI Express |
Connectivity technology | Wired |
Bandwidth | |
Full duplex | Yes |
Maximum data transfer rate | 20000 Mbit/s |
Network | |
Chipset | Intel - X540 |
VLAN tagging | Yes |
Jumbo frames | 15000 |
Ethernet LAN | Yes |
Cabling technology | 10/100/1000BaseT(X) |
Networking standards | IEEE 802.3ad-IEEE 802.3q-IEEE 802.3u-IEEE 802.3an-IEEE 802.3az-IEEE 802.3ab |
Wake-on-LAN ready | Yes |
Auto MDIX IEEE | No |
Jumbo frames support | Yes |
Full duplex | Yes |
Ethernet LAN data rates | 10-1000-100 Mbit/s |
Maximum data transfer rate | 20000 Mbit/s |
Auto-negotiation | Yes |
Technical details | |
Product colour | Black- Stainless steel |
Wake-on-LAN ready | Yes |
Auto MDIX IEEE | No |
Design | |
Product colour | Black- Stainless steel |
Chipset | Intel - X540 |
Internal | Yes |
LED indicators | Activity- Speed |
Software | |
Windows operating systems supported | Windows 10-Windows 10 Education-Windows 10 Education x64-Windows 10 Enterprise-Windows 10 Enterprise x64-Windows 10 Home-Windows 10 Home x64-Windows 10 IOT Core-Windows 10 Pro-Windows 10 Pro x64-Windows 10 x64-Windows 7-Windows 7 Enterprise-Windows 7 Enterprise x64-Windows 7 Home Basic-Windows 7 Home Basic x64-Windows 7 Home Premium-Windows 7 Home Premium x64-Windows 7 Professional-Windows 7 Professional x64-Windows 7 Starter-Windows 7 Starter x64-Windows 7 Ultimate-Windows 7 Ultimate x64-Windows 7 x64-Windows 8-Windows 8 Enterprise-Windows 8 Enterprise x64-Windows 8 Pro-Windows 8 Pro x64-Windows 8 x64-Windows 8.1-Windows 8.1 Enterprise-Windows 8.1 Enterprise x64-Windows 8.1 Pro-Windows 8.1 Pro x64-Windows 8.1 x64-Windows Vista Home Premium x64 |
Linux operating systems supported | Yes |
Indication | |
LED indicators | Activity- Speed |
System requirements | |
Server operating systems supported | Windows Server 2008 R2-Windows Server 2012-Windows Server 2012 R2-Windows Server 2016-Windows Server 2019 |
Windows operating systems supported | Windows 10-Windows 10 Education-Windows 10 Education x64-Windows 10 Enterprise-Windows 10 Enterprise x64-Windows 10 Home-Windows 10 Home x64-Windows 10 IOT Core-Windows 10 Pro-Windows 10 Pro x64-Windows 10 x64-Windows 7-Windows 7 Enterprise-Windows 7 Enterprise x64-Windows 7 Home Basic-Windows 7 Home Basic x64-Windows 7 Home Premium-Windows 7 Home Premium x64-Windows 7 Professional-Windows 7 Professional x64-Windows 7 Starter-Windows 7 Starter x64-Windows 7 Ultimate-Windows 7 Ultimate x64-Windows 7 x64-Windows 8-Windows 8 Enterprise-Windows 8 Enterprise x64-Windows 8 Pro-Windows 8 Pro x64-Windows 8 x64-Windows 8.1-Windows 8.1 Enterprise-Windows 8.1 Enterprise x64-Windows 8.1 Pro-Windows 8.1 Pro x64-Windows 8.1 x64-Windows Vista Home Premium x64 |
Linux operating systems supported | Yes |
Operational conditions | |
Operating temperature (T-T) | 5 - 50 °C |
Storage temperature (T-T) | -20 - 60 °C |
Operating relative humidity (H-H) | 20 - 80% |
Weight & dimensions | |
Width | 20 mm |
Depth | 163 mm |
Height | 120 mm |
Weight | 160 g |
Package width | 208 mm |
Package depth | 147 mm |
Package height | 40 mm |
Package weight | 242 g |
Packaging data | |
Low-profile bracket | Yes |
Package width | 208 mm |
Package depth | 147 mm |
Package height | 40 mm |
Package weight | 242 g |
Manual | Yes |
Packaging content | |
Manual | Yes |
Low-profile bracket | Yes |
Performance | |
Server operating systems supported | Windows Server 2008 R2-Windows Server 2012-Windows Server 2012 R2-Windows Server 2016-Windows Server 2019 |
Wake-on-LAN ready | Yes |
Auto MDIX IEEE | No |
Windows operating systems supported | Windows 10-Windows 10 Education-Windows 10 Education x64-Windows 10 Enterprise-Windows 10 Enterprise x64-Windows 10 Home-Windows 10 Home x64-Windows 10 IOT Core-Windows 10 Pro-Windows 10 Pro x64-Windows 10 x64-Windows 7-Windows 7 Enterprise-Windows 7 Enterprise x64-Windows 7 Home Basic-Windows 7 Home Basic x64-Windows 7 Home Premium-Windows 7 Home Premium x64-Windows 7 Professional-Windows 7 Professional x64-Windows 7 Starter-Windows 7 Starter x64-Windows 7 Ultimate-Windows 7 Ultimate x64-Windows 7 x64-Windows 8-Windows 8 Enterprise-Windows 8 Enterprise x64-Windows 8 Pro-Windows 8 Pro x64-Windows 8 x64-Windows 8.1-Windows 8.1 Enterprise-Windows 8.1 Enterprise x64-Windows 8.1 Pro-Windows 8.1 Pro x64-Windows 8.1 x64-Windows Vista Home Premium x64 |
Linux operating systems supported | Yes |
Auto-negotiation | Yes |
Other features | |
Chipset | Intel - X540 |
Manual | Yes |
Jumbo frames | 15000 |

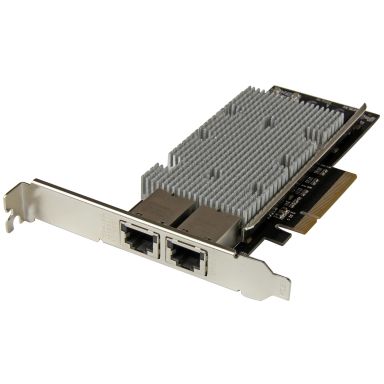

StarTech.com 2-Port PCI Express 10GBase-T Ethernet Network Card - with Intel X540 Chip
