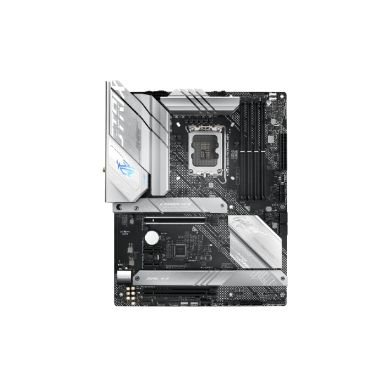

Asus Rog Strix B660-A Gaming Wifi Intel B660 Lga 1700 Atx
In Stock
|
Call For Price
(0808 189 1246)
Internal I/O
Number of M.2 (M) slots
3
Thunderbolt headers
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
12V power connector
Yes
Supported storage drive interfaces
M.2- SATA III
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
TPM connector
Yes
S/PDIF out connector
Yes
Number of SATA III connectors
4
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel B660
HDMI version
2.1
Motherboard form factor
ATX
Component for
PC
Audio
Audio output channels
7.1 channels
Performance
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 10 x64- Windows 11 x64
Motherboard chipset family
Intel
Motherboard chipset
Intel B660
RAID levels
0- 1- 5- 10
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Processor
Processor manufacturer
Intel
Compatible processor series
Intel® Celeron®- Intel® Core⢠i3- Intel® Core⢠i5- Intel® Core⢠i7- Intel® Core⢠i9- Intel® Pentium®
Maximum number of SMP processors
1
Processor socket
LGA 1700
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR5-SDRAM
Memory channels
Dual-channel
Non-ECC
Yes
Supported memory clock speeds
4800-5200-5400-5600-5800-6000 MHz
Maximum internal memory
128 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2- SATA III
RAID levels
0- 1- 5- 10
RAID support
Yes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
DisplayPort version
1.4
USB 2.0 ports quantity
4
HDMI version
2.1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DisplayPorts quantity
1
USB 3.2 Gen 2x2 Type-C ports quantity
1
Network
Ethernet LAN
Yes
Wi-Fi
Yes
Wi-Fi standards
802.11a- 802.11b- 802.11g- Wi-Fi 4 (802.11n)- Wi-Fi 5 (802.11ac)- Wi-Fi 6 (802.11ax)
Wake-on-LAN ready
Yes
Ethernet interface type
2.5 Gigabit Ethernet
Bluetooth
Yes
Bluetooth version
5.2
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
Features
Windows operating systems supported
Windows 10 x64- Windows 11 x64
Motherboard chipset family
Intel
Motherboard chipset
Intel B660
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Audio chip
Realtek ALC4080
Harmonized System (HS) code
84733020
Expansion slots
Number of M.2 (M) slots
3
PCI Express x1 (Gen 3.x) slots
2
PCI Express x16 slots
2
BIOS
BIOS type
UEFI AMI
BIOS memory size
192 Mbit
Software
Windows operating systems supported
Windows 10 x64- Windows 11 x64
Weight & dimensions
Height
73 mm
Weight
1.42 kg
Width
305 mm
Depth
244 mm
Packaging content
Cables included
SATA
Other features
Height
73 mm
Weight
1.42 kg
Asus Rog Strix B660-A Gaming Wifi Intel B660 Lga 1700 Atx
