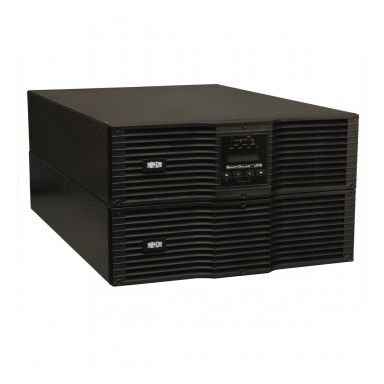

Tripp Lite SmartOnline 200-240V 10kVA 9kW Double-Conversion UPS, 6U, Extended Run, Network Card Slot, USB, DB9, Bypass Switch,C19
In Stock
|
Call For Price
(0808 189 1246)
Specifications
Power
Output power
9000 W
Input operation voltage (min)
200 V
Input operation voltage (max)
240 V
Output operation voltage (min)
200 V
Output operation voltage (max)
240 V
Power factor
0.9
Crest factor
0.12569444444444
Output power capacity
10000 VA
Performance
UPS topology
Double-conversion (Online)
Waveform
Sine
Number of input phases
1
Surge protection
Yes
Noise level
60 dB
Features
UPS topology
Double-conversion (Online)
Waveform
Sine
Number of input phases
1
Output power
9000 W
Input operation voltage (min)
200 V
Input operation voltage (max)
240 V
Output operation voltage (min)
200 V
Output operation voltage (max)
240 V
Surge protection
Yes
Power factor
0.9
Noise level
60 dB
Crest factor
0.12569444444444
Output power capacity
10000 VA
Input frequency
50/60 Hz
Ports & interfaces
AC outlets quantity
6 AC outlet(s)
AC outlet types
C19 coupler
USB 2.0 ports quantity
1
Serial ports quantity
1
Battery
Battery recharge time
8 h
Typical backup time at half load
12.5 min
Typical backup time at full load
4.3 min
Hot-swap battery
Yes
Cold start
Yes
Design
Rack capacity
6U
Form factor
Rackmount/Tower
Product colour
Black
Display
LCD
Cooling type
Active
RoHS compliance
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 50 °C
Operating altitude
0 - 3000 m
Cooling
Cooling type
Active
Packaging data
Package width
660.4 mm
Package depth
1041.4 mm
Package height
812.8 mm
Package weight
140.6 kg
Certificates
RoHS compliance
Yes
Weight & dimensions
Package width
660.4 mm
Package depth
1041.4 mm
Package height
812.8 mm
Package weight
140.6 kg
Tripp Lite SmartOnline 200-240V 10kVA 9kW Double-Conversion UPS, 6U, Extended Run, Network Card Slot, USB, DB9, Bypass Switch,C19
