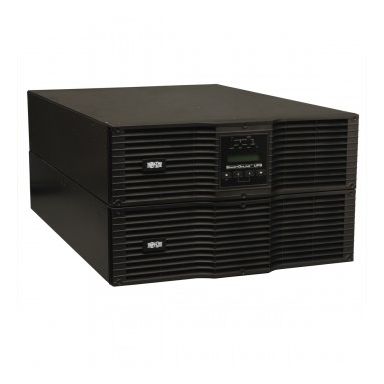

Tripp Lite SmartOnline 208/240, 230V 8kVA 7.2kW Double-Conversion UPS, 6U Rack/Tower, Extended Run, Network Card Options, USB, DB9, Bypass Switch, C19 outlets
In Stock
|
Call For Price
(0808 189 1246)
Specifications
Power
Output power
7200 W
Input operation voltage (min)
200 V
Input operation voltage (max)
240 V
Output operation voltage (min)
200 V
Output operation voltage (max)
240 V
Maximum current
50 A
Efficiency
0.91
Emergency Power Off (EPO)
Yes
Power factor
0.9
Crest factor
0.12569444444444
Output power capacity
8000 VA
Performance
UPS topology
Double-conversion (Online)
Waveform
Sine
Number of input phases
1
LED indicators
Yes
EMI/RFI noise filtering
Yes
Surge protection
Yes
Noise level
60 dB
Audible alarm(s)
Yes
Features
UPS topology
Double-conversion (Online)
Waveform
Sine
Number of input phases
1
Output power
7200 W
Input operation voltage (min)
200 V
Input operation voltage (max)
240 V
Output operation voltage (min)
200 V
Output operation voltage (max)
240 V
Maximum current
50 A
Efficiency
0.91
EMI/RFI noise filtering
Yes
Surge protection
Yes
Emergency Power Off (EPO)
Yes
Power factor
0.9
Noise level
60 dB
Crest factor
0.12569444444444
Audible alarm(s)
Yes
Output power capacity
8000 VA
Input frequency
50/60 Hz
Ports & interfaces
AC outlets quantity
6 AC outlet(s)
AC outlet types
C19 coupler
USB 2.0 ports quantity
1
Serial ports quantity
1
Battery
Battery recharge time
6 h
Typical backup time at half load
13.5 min
Typical backup time at full load
5.5 min
Hot-swap battery
Yes
Cold start
Yes
Design
Rack capacity
6U
Form factor
Rackmount/Tower
LED indicators
Yes
Product colour
Black
Display
LCD
Cooling type
Active
Certification
UL1778 CSA CE NOM Class A
RoHS compliance
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 50 °C
Operating altitude
0 - 3000 m
Cooling
Cooling type
Active
Packaging data
Package width
647.7 mm
Package depth
1028.7 mm
Package height
889 mm
Package weight
146.1 kg
Certificates
Certification
UL1778 CSA CE NOM Class A
RoHS compliance
Yes
Weight & dimensions
Package width
647.7 mm
Package depth
1028.7 mm
Package height
889 mm
Package weight
146.1 kg
Tripp Lite SmartOnline 208/240, 230V 8kVA 7.2kW Double-Conversion UPS, 6U Rack/Tower, Extended Run, Network Card Options, USB, DB9, Bypass Switch, C19 outlets
