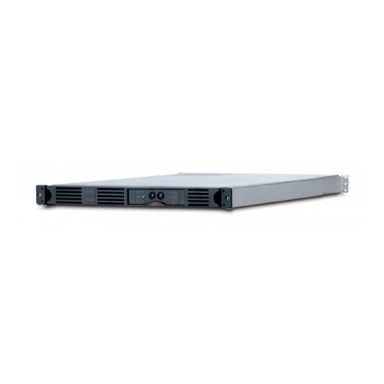

APC Smart-UPS uninterruptible power supply (UPS) Line-Interactive 1000 VA 640 W 4 AC outlet(s)
0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
| Specifications | |
|---|---|
| Power | |
| Output power | 640 W |
| Input operation voltage (min) | 151 V |
| Input operation voltage (max) | 302 V |
| Surge energy rating | 480 J |
| Output power capacity | 1000 VA |
| Performance | |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| LED indicators | Battery replacement |
| Surge protection | Yes |
| Noise level | 55 dB |
| Audible alarm(s) | Yes |
| Features | |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Output power | 640 W |
| Input operation voltage (min) | 151 V |
| Input operation voltage (max) | 302 V |
| Surge energy rating | 480 J |
| Surge protection | Yes |
| Noise level | 55 dB |
| Audible alarm(s) | Yes |
| Output power capacity | 1000 VA |
| Input frequency | 50/60 Hz |
| Ports & interfaces | |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| SmartSlot | Yes |
| AC outlets quantity | 4 AC outlet(s) |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| Number of output IEC jumpers | 2 |
| Battery | |
| Battery life (max) | 6 year(s) |
| Battery capacity | 216 VAh |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 2 h |
| Typical backup time at half load | 14.5 min |
| Typical backup time at full load | 5.4 min |
| Hot-swap battery | Yes |
| Automatic battery test | Yes |
| Design | |
| Rack capacity | 1U |
| Form factor | Rackmount |
| LED indicators | Battery replacement |
| Product colour | Black |
| RoHS compliance | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Weight & dimensions | |
| Weight | 21.8 kg |
| Width | 432 mm |
| Height | 44 mm |
| Depth | 660 mm |
| Package width | 559 mm |
| Package depth | 775 mm |
| Package height | 191 mm |
| Package weight | 25.4 kg |
| Packaging data | |
| Cables included | RS-232USB cable |
| Rack mount kit | Yes |
| Manual | Yes |
| Software CD | Yes |
| Package width | 559 mm |
| Package depth | 775 mm |
| Package height | 191 mm |
| Package weight | 25.4 kg |
| Logistics data | |
| Quantity per pallet | 8 pc(s) |
| RoHS compliance | Yes |
| Other features | |
| Interface | DB-9 RS-232 SmartSlot USB |
| Input connection type | IEC-320 C14 |
| Nominal output voltage | 230 V |
| Nominal input voltage | 230 V |
| Packaging content | |
| Cables included | RS-232USB cable |
| Rack mount kit | Yes |
| Manual | Yes |
| Software CD | Yes |
APC Smart-UPS uninterruptible power supply (UPS) Line-Interactive 1000 VA 640 W 4 AC outlet(s)
| Length | 66.0000 cm |
| Width | 43.2000 cm |
| Height | 4.4000 cm |
| Weight | 26.440000 kgs |
