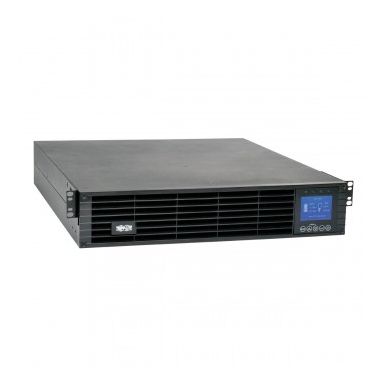

Tripp Lite SmartOnline 208/230V 1kVA 900W Double-Conversion UPS, 2U, Extended Run, SNMP Card Option, LCD, USB, DB9, ENERGY STAR
In Stock
|
Call For Price
(0808 189 1246)
Specifications
Power
Output voltage regulation
0.02
Output power
900 W
Input operation voltage (min)
200 V
Input operation voltage (max)
240 V
Output operation voltage (min)
200 V
Output operation voltage (max)
240 V
Surge energy rating
627 J
Maximum current
4.99 A
Efficiency
0.93
Output power capacity
1000 VA
Performance
Audible alarm modes
FaultLow battery alarmOverload alarm
UPS topology
Double-conversion (Online)
Waveform
Sine
Number of input phases
1
LED indicators
Yes
EMI/RFI noise filtering
Yes
Surge protection
Yes
Power protection features
Over voltageUnder voltage
Noise level
45 dB
Audible alarm(s)
Yes
Features
Audible alarm modes
FaultLow battery alarmOverload alarm
UPS topology
Double-conversion (Online)
Waveform
Sine
Output voltage regulation
0.02
Number of input phases
1
Output power
900 W
Input operation voltage (min)
200 V
Input operation voltage (max)
240 V
Output operation voltage (min)
200 V
Output operation voltage (max)
240 V
Surge energy rating
627 J
Maximum current
4.99 A
Efficiency
0.93
EMI/RFI noise filtering
Yes
Surge protection
Yes
Power protection features
Over voltageUnder voltage
Noise level
45 dB
Audible alarm(s)
Yes
Output power capacity
1000 VA
Input frequency
50/60 Hz
Ports & interfaces
AC outlets quantity
6 AC outlet(s)
AC outlet types
C13 couplerC14 coupler
Battery
Typical backup time at half load
12.3 min
Typical backup time at full load
4.7 min
Hot-swap battery
Yes
Cold start
Yes
Design
Rack capacity
2U
Form factor
Rackmount
LED indicators
Yes
Product colour
Black
Energy Star certified
Yes
Display
LCD
Cooling type
Active
RoHS compliance
Yes
Housing material
Metal
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 50 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%
Cooling
Cooling type
Active
Weight & dimensions
Weight
12.7 kg
Width
437.9 mm
Height
87.9 mm
Depth
397 mm
Package width
502.9 mm
Package depth
596.9 mm
Package height
243.8 mm
Package weight
20 kg
Packaging data
Cables included
Input power cableOutput power cableUSB cable
Manual
Yes
Package width
502.9 mm
Package depth
596.9 mm
Package height
243.8 mm
Package weight
20 kg
Certificates
Energy Star certified
Yes
RoHS compliance
Yes
Packaging content
Cables included
Input power cableOutput power cableUSB cable
Manual
Yes
Tripp Lite SmartOnline 208/230V 1kVA 900W Double-Conversion UPS, 2U, Extended Run, SNMP Card Option, LCD, USB, DB9, ENERGY STAR
| Length | 39.70 cm |
| Width | 43.79 cm |
| Height | 8.79 cm |
| Weight | 12.700000 kgs |
