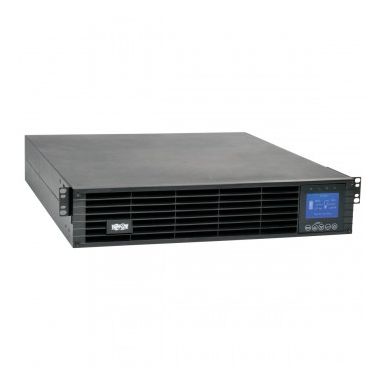

Tripp Lite SmartOnline 208/230V 2.2kVA 1.98kW Double-Conversion UPS, 2U Rack-Mount, Extended Run, Network Card Options, LCD, USB, DB9, ENERGY STAR
0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
Specifications | |
---|---|
Power | |
Output voltage regulation | +/- 2% |
Output power | 1980 W |
Input operation voltage (min) | 200 V |
Input operation voltage (max) | 240 V |
Output operation voltage (min) | 200 V |
Output operation voltage (max) | 240 V |
Surge energy rating | 936 J |
Maximum current | 10.94 A |
Efficiency | 0.9 |
Emergency Power Off (EPO) | Yes |
Power factor | 0.9 |
Crest factor | 0.12569444444444 |
Output power capacity | 2200 VA |
Performance | |
Audible alarm modes | Battery replacement |
UPS topology | Double-Conversion (Online) |
Waveform | Sine |
Number of phases | 1 |
LED indicators | Yes |
EMI/RFI noise filtering | Yes |
Surge protection | Yes |
Power protection features | Over voltageUnder voltage |
Noise level | 50 dB |
Audible alarm(s) | Yes |
Features | |
Audible alarm modes | Battery replacement |
UPS topology | Double-Conversion (Online) |
Waveform | Sine |
Output voltage regulation | +/- 2% |
Output power | 1980 W |
Input operation voltage (min) | 200 V |
Input operation voltage (max) | 240 V |
Output operation voltage (min) | 200 V |
Output operation voltage (max) | 240 V |
Surge energy rating | 936 J |
Maximum current | 10.94 A |
Efficiency | 0.9 |
EMI/RFI noise filtering | Yes |
Surge protection | Yes |
Emergency Power Off (EPO) | Yes |
Power protection features | Over voltageUnder voltage |
Power factor | 0.9 |
Noise level | 50 dB |
Crest factor | 0.12569444444444 |
Audible alarm(s) | Yes |
Output power capacity | 2200 VA |
Input frequency | 50/60 Hz |
Number of phases | 1 |
Ports & interfaces | |
Emergency Power Off (EPO) connector | Yes |
AC outlets quantity | 9 AC outlet(s) |
AC outlet types | C13 couplerC19 coupler |
Power plug | C20 coupler |
USB 2.0 ports quantity | 1 |
Serial ports quantity | 1 |
Battery | |
Battery recharge time | 3 h |
Typical backup time at half load | 11.7 min |
Typical backup time at full load | 4.3 min |
Hot-swap battery | Yes |
Cold start | Yes |
Design | |
Rack capacity | 2U |
Form factor | Rackmount |
LED indicators | Yes |
Product colour | Black |
Energy Star certified | Yes |
Display | LCD |
Cooling type | Active |
Certification | CE EAC SASO UL1778 |
RoHS compliance | Yes |
Housing material | Metal |
Operational conditions | |
Operating temperature (T-T) | 0 - 40 °C |
Storage temperature (T-T) | -15 - 50 °C |
Operating relative humidity (H-H) | 5 - 95% |
Cooling | |
Cooling type | Active |
Weight & dimensions | |
Weight | 23.1 kg |
Width | 438 mm |
Height | 88 mm |
Depth | 496 mm |
Package width | 564.9 mm |
Package depth | 700 mm |
Package height | 240 mm |
Package weight | 29 kg |
Packaging data | |
Cables included | SerialUSB cable |
Rack mount kit | Yes |
Package width | 564.9 mm |
Package depth | 700 mm |
Package height | 240 mm |
Package weight | 29 kg |
Certificates | |
Energy Star certified | Yes |
Certification | CE EAC SASO UL1778 |
RoHS compliance | Yes |
Other features | |
Number of phases | 1 |
Packaging content | |
Cables included | SerialUSB cable |
Rack mount kit | Yes |
Tripp Lite SmartOnline 208/230V 2.2kVA 1.98kW Double-Conversion UPS, 2U Rack-Mount, Extended Run, Network Card Options, LCD, USB, DB9, ENERGY STAR
Length | 49.6000 cm |
Width | 43.8000 cm |
Height | 8.8000 cm |
Weight | 23.100000 kgs |
