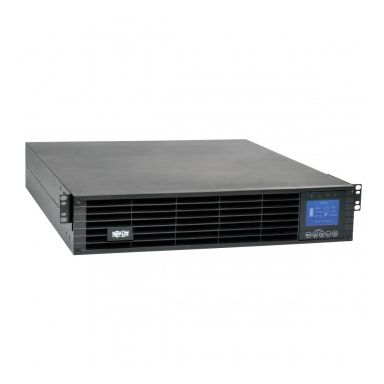

Tripp Lite SmartOnline 208/230V 3kVA 2.7kW Double-Conversion UPS, 2U Rack/Tower, Extended Run, Network Card Slot, LCD, USB, DB9, ENERGY STAR
In Stock
|
Call For Price
(0808 189 1246)
Specifications
Power
Output voltage regulation
0.1
Output frequency regulation
50 - 60 Hz
Output power
2700 W
Input operation voltage (min)
200 V
Input operation voltage (max)
240 V
Output operation voltage (min)
200 V
Output operation voltage (max)
240 V
Surge energy rating
570 J
Power factor
0.9
Crest factor
0.12569444444444
Output power capacity
3000 VA
Performance
UPS topology
Double-conversion (Online)
Number of input phases
1
Number of phases
1
LED indicators
Yes
EMI/RFI noise filtering
Yes
Features
UPS topology
Double-conversion (Online)
Output voltage regulation
0.1
Output frequency regulation
50 - 60 Hz
Number of input phases
1
Output power
2700 W
Input operation voltage (min)
200 V
Input operation voltage (max)
240 V
Output operation voltage (min)
200 V
Output operation voltage (max)
240 V
Surge energy rating
570 J
EMI/RFI noise filtering
Yes
Power factor
0.9
Crest factor
0.12569444444444
Output power capacity
3000 VA
Number of phases
1
Ports & interfaces
AC outlets quantity
10 AC outlet(s)
AC outlet types
C13 couplerC19 coupler
Power plug
C20 coupler
USB 2.0 ports quantity
1
Serial ports quantity
1
Battery
Battery voltage
72 V
Typical backup time at half load
13.5 min
Typical backup time at full load
5 min
Hot-swap battery
Yes
Design
Rack capacity
2U
Form factor
Rackmount/Tower
LED indicators
Yes
Product colour
Black
Display
LCD
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 50 °C
Operating relative humidity (H-H)
5 - 95%
Weight & dimensions
Weight
31.2 kg
Width
438 mm
Height
88 mm
Depth
616 mm
Package width
599.9 mm
Package depth
760 mm
Package height
240 mm
Package weight
39 kg
Packaging data
Package width
599.9 mm
Package depth
760 mm
Package height
240 mm
Package weight
39 kg
Tripp Lite SmartOnline 208/230V 3kVA 2.7kW Double-Conversion UPS, 2U Rack/Tower, Extended Run, Network Card Slot, LCD, USB, DB9, ENERGY STAR
| Length | 61.60 cm |
| Width | 43.80 cm |
| Height | 8.80 cm |
| Weight | 31.200000 kgs |
