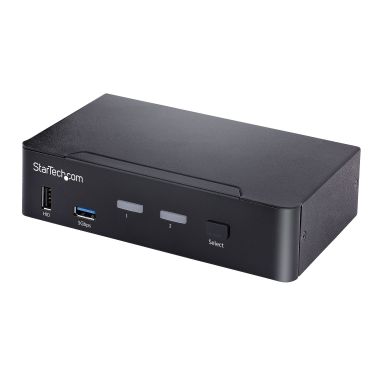

StarTech.com SV231DPUCA KVM switch Black

Console USB ports quantity

6

Console ports

3.5mm headphone, 3.5mm mic, DisplayPort

Number of microphone inputs

1

DisplayPort version

1.2

Number of computers controlled

2

Keyboard port type

USB

Mouse port type

USB

Video port type

DisplayPort

Headphone outputs

1

USB hub

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity

2

Console DisplayPorts ports quantity

1

HDCP

Yes

Chipset

Parade - PS8461, Etron - EJ899I

HDCP

Yes

Data transfer rate (max)

5 Gbit/s

HD type

4K Ultra HD

Video bandwidth

60 Hz

Maximum resolution

5120 x 1440 pixels

Scan interval

3,8,15,30 s

Audio channels

2

Number of displays supported

1

Product colour

Black

Rack mounting

No

Scan interval

3,8,15,30 s

Push button

Yes

LED indicators

Yes

Hot keys

Yes

IP control

No

USB hub

Yes

Mean time between failures (MTBF)

158000 h

Product colour

Black

Rack mounting

No

Push button

Yes

LED indicators

Yes

Hot keys

Yes

Built-in display

No

Input current

1.2 A

Output current

0.125

Power plug type

Type M

Output voltage

12 V

Power source

AC

Input voltage

100 - 240 V

HD type

4K Ultra HD

Video bandwidth

60 Hz

Maximum resolution

5120 x 1440 pixels

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-10 - 60 °C

Operating relative humidity (H-H)

0 - 80%

Width

140 mm

Depth

160 mm

Height

40 mm

Weight

600 g

Package width

184 mm

Package depth

238 mm

Package height

89 mm

Package weight

1 kg

Package width

184 mm

Package depth

238 mm

Package height

89 mm

Package weight

1 kg

Rubber feet

Yes

Quick installation guide

Yes

AC adapter included

Yes

IP control

No

Push button

Yes

Hot keys

Yes

Master (outer) case width

300 mm

Master (outer) case length

397 mm

Master (outer) case height

257 mm

Products per master (outer) case

6 pc(s)
