Technical details | |
---|---|
Product colour | Black |
Rack mounting | Yes |
Plug and Play | Yes |
On Screen Display (OSD) | No |
LED indicators | Link- Power |
Hot keys | Yes |
IP control | No |
Audio support | Yes |
Sustainability certificates | RoHS |
Performance | |
Maximum cable length | 10000 m |
Daisy chain | No |
Plug and Play | Yes |
Maximum resolution | 1920 x 1080 pixels |
Audio channels | 2.0 |
Video | |
Maximum resolution | 1920 x 1080 pixels |
Ports & interfaces | |
Console USB ports quantity | 4 |
Console ports | 3.5mm headphone- HDMI- USB A |
USB connector type | USB Type-A |
Number of computers controlled | 4 |
Keyboard port type | USB |
Mouse port type | USB |
Video port type | HDMI |
Audio connections | Yes |
Headphone outputs | 4 |
DC-in jack | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 3 |
Network | |
Ethernet LAN | No |
Design | |
Mean time between failures (MTBF) | 142000 h |
Maximum cable length | 10000 m |
Product colour | Black |
Rack mounting | Yes |
LED indicators | Link- Power |
Hot keys | Yes |
Certification | CE- FCC- UL- PSE |
Display | |
Built-in display | No |
On Screen Display (OSD) | No |
Power | |
Input current | 0.6 A |
Output current | 1.5 A |
Power plug type | Type M |
Compatible power plug types | AU-EU-UK-US |
Output voltage | 12 V |
AC input voltage | 100-240 V |
Operational conditions | |
Operating temperature (T-T) | 0 - 40 °C |
Storage temperature (T-T) | -10 - 60 °C |
Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions | |
Width | 130 mm |
Depth | 220 mm |
Height | 43 mm |
Weight | 1.1 kg |
Package width | 297 mm |
Package depth | 247 mm |
Package height | 85 mm |
Package weight | 1.6 kg |
Packaging data | |
Package width | 297 mm |
Package depth | 247 mm |
Package height | 85 mm |
Package weight | 1.6 kg |
Packaging content | |
Rubber feet | Yes |
Quick installation guide | Yes |
Certificates | |
Certification | CE- FCC- UL- PSE |
Other features | |
Hot keys | Yes |
IP control | No |
Audio support | Yes |

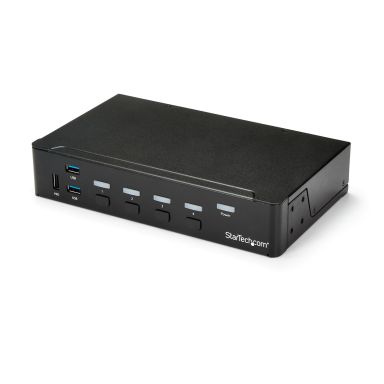

StarTech.com 4-Port HDMI KVM Switch - USB 3.0 - 1080p
