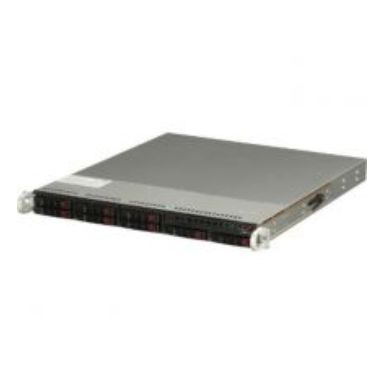

Supermicro SuperServer 1018D-73MTF
In Stock
|
Call For Price
(0808 189 1246)
Processor
Processor socket
LGA 1150 (Socket H3)
Processor family
Intel
Number of processors supported
1
Motherboard chipset
Intel C222
Intel Xeon series
E3-1200
Compatible processor series
Intel Celeron Intel Pentium
Memory
Supported RDIMM clock speeds
1600 MHz
Supported memory types
DDR3-SDRAM
Supported DIMM module capacities
1GB 2GB 4GB 8GB
Number of DIMM slots
4
Memory voltage
1.351.5 V
Memory form factor
240-pin DIMM
ECC
Yes
Storage
Number of storage drives supported
8
RAID levels
01510
Hot-swap HDD bays
Yes
Storage drive sizes supported
2.5"
Graphics
On-board graphics adapter model
Aspeed AST2400
Network
LAN controller
Intel I210-AT
Ethernet LAN data rates
101001000 Mbit/s
Ethernet LAN
Yes
Copper ethernet cabling technology
1000BASE-T100BASE-TX10BASE-T
Ethernet interface type
Fast Ethernet Gigabit Ethernet
Ports & interfaces
Number of SATA III connectors
2
Number of SATA II connectors
4
VGA (D-Sub) ports quantity
1
USB 2.0 ports quantity
4
IPMI LAN (RJ-45) port
Yes
Ethernet LAN (RJ-45) ports
3
Number of SAS ports
8
Expansion slots
PCI Express x8 slots
1
Technical details
Number of storage drives supported
8
On/off switch
Yes
Chassis type
Rack (1U)
Colour
Product colour
Black Silver
Indication
LED indicators
Yes
BIOS
BIOS type
AMI
BIOS memory size
128 Mbit
ACPI version
2
Design
On/off switch
Yes
LED indicators
Yes
Product colour
Black Silver
Chassis type
Rack (1U)
Power
Power supply
330 W
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
10 - 35 °C
Operating relative humidity (H-H)
8 - 90%
Weight & dimensions
Width
17.2" (437 mm)
Weight
30.4 lbs (13.8 kg)
Height
1.69" (43 mm)
Depth
20" (507 mm)
Supermicro SuperServer 1018D-73MTF
| Length | 50.70 cm |
| Width | 43.70 cm |
| Height | 4.30 cm |
| Weight | 13.790000 kgs |
