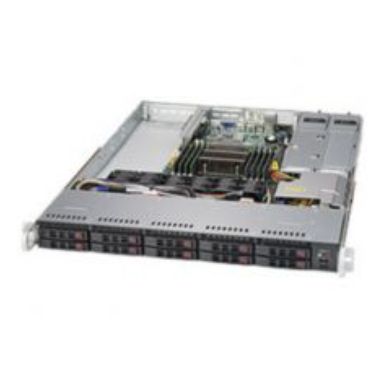

Supermicro SuperServer 1018R-WC0R
In Stock
|
Call For Price
(0808 189 1246)
Hard drive
RAID levels
110
Hot-swap HDD bays
Yes
Processor
Maximum cache
45 MB
Processor socket
LGA 2011 (Socket R)
Processor family
Intel
Number of processors supported
1
Motherboard chipset
Intel C612
Intel Xeon series
E5-1600E5-2600
Compatible processor series
Intel Xeon
Memory
Memory bus
72 bit
Supported memory types
DDR4-SDRAM
Supported DIMM module capacities
16GB 32GB 4GB 8GB
Number of DIMM slots
8
Memory voltage
1.2 V
Memory form factor
288-pin DIMM
Maximum RDIMM memory
256 GB
Maximum internal memory
512 GB
ECC
Yes
Storage
Number of storage drives supported
10
RAID levels
110
Hot-swap HDD bays
Yes
Storage drive sizes supported
2.5"
Performance
Backplanes support
Yes
Graphics
On-board graphics adapter model
Aspeed AST2400
Network
LAN controller
Intel I350-AM2
Ethernet LAN data rates
101001000 Mbit/s
Ethernet LAN
Yes
Ports & interfaces
Number of SATA III connectors
10
VGA (D-Sub) ports quantity
1
USB 2.0 ports quantity
2
Serial ports quantity
2
IPMI LAN (RJ-45) port
Yes
Ethernet LAN (RJ-45) ports
3
Expansion slots
PCI Express x8 slots
1
PCI Express x16 slots
2
Features
Backplanes support
Yes
Technical details
Number of storage drives supported
10
On/off switch
Yes
Number of fans
5 fan(s)
Fan diameter
1.57" (4 cm)
Chassis type
Rack (1U)
Backplanes support
Yes
Sustainability certificates
RoHS
Colour
Product colour
Black Silver
Indication
LED indicators
Yes
Design
On/off switch
Yes
Number of fans
5 fan(s)
Fan diameter
1.57" (4 cm)
LED indicators
Yes
Product colour
Black Silver
Chassis type
Rack (1U)
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power supply
750 W
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
10 - 35 °C
Operating relative humidity (H-H)
8 - 90%
Weight & dimensions
Width
17.2" (437 mm)
Weight
24.9 lbs (11.3 kg)
Height
1.69" (43 mm)
Depth
23.5" (597 mm)
Supermicro SuperServer 1018R-WC0R
| Length | 59.70 cm |
| Width | 43.70 cm |
| Height | 4.30 cm |
| Weight | 11.290000 kgs |
