Supermicro SuperServer 1018R-WR
In Stock
|
Call For Price
(0808 189 1246)
SPECIFICATIONS
Product Description

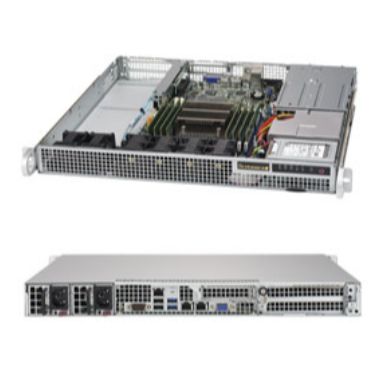

Supermicro SuperServer 1018R-WR - rack-mountable
Type
Server - rack-mountable
Height (Rack Units)
1U
Server Scalability
1-way
Processor
No CPU
Processor Socket
LGA2011-v3 Socket
RAM
0 GB (installed) / 1 TB (max) - DDR4 SDRAM - ECC
Storage Controller
SATA (SATA 6Gb/s)
Hard Drive
No HDD
Optical Storage
No optical drive
Graphics Controller
ASPEED AST2400
Networking
GigE
Power
AC 120/230 V (50/60 Hz)
Power Redundancy
Yes
Color
Black
Dimensions (WxDxH)
17.2 in x 16.9 in x 1.7 in
Weight
15.5 lbs
General
Type
Server
Product Form Factor
Rack-mountable - 1U
Server Scalability
1-way
Internal Bays Qty
2
Color
Black
Processor / Chipset
CPU
No CPU
Max CPU Qty
1
CPU Upgradability
Upgradable
CPU Socket
LGA2011-v3 Socket
Chipset Type
Intel C612
RAM
Installed Size
0 GB / 1 TB (max)
Technology
DDR4 SDRAM - ECC
Form Factor
DIMM 288-pin
Slots
8 (total) / 8 (empty)
Hard Drive
Type
No HDD
Storage Controller
Type
1 x SATA
Controller Interface Type
SATA 6Gb/s
Channel Qty
10
RAID Level
RAID 0 RAID 1 RAID 10
Optical Storage
Type
No optical drive
Monitor
Monitor Type
None.
Graphics Controller
Graphics Processor
ASPEED AST2400
Video Interfaces
VGA
Networking
Ethernet Ports
2 x Gigabit Ethernet
Ethernet Controller
Intel I350-AM2
Data Link Protocol
Ethernet Fast Ethernet Gigabit Ethernet
Remote Management Protocol
DMI 2.3 IPMI 2.0
Features
KVM over IP support
Expansion / Connectivity
Bays
2 (total) / 2 (free) x internal 2.5"
Miscellaneous
Included Accessories
CPU Heatsink air shroud 2 x riser cards
Cables Included
Serial ATA cable (2 pcs.)
Theft/Intrusion Protection
Chassis intrusion switch
Compliant Standards
Plug and Play APM 1.2 RoHS ACPI 4.0
Power
Device Type
Power supply
Power Redundancy
Yes
Power Redundancy Scheme
1+1
Installed Qty
2
Max Supported Qty
2
Voltage Required
AC 120/230 V (50/60 Hz)
Power Provided
400 Watt
80 PLUS Certification
80 PLUS Platinum
Dimensions & Weight
Width
17.2 in
Depth
16.9 in
Height
1.7 in
Weight
15.5 lbs
Supermicro SuperServer 1018R-WR
| Length | 27 cm |
| Width | 24 cm |
| Height | 8.25 cm |
| Weight | 1.000000 kgs |
