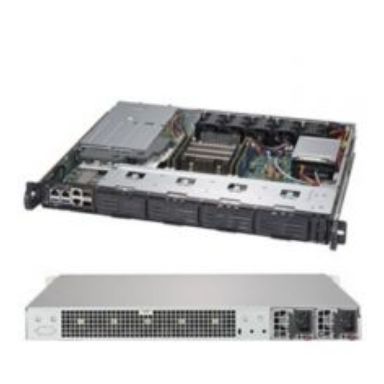

Supermicro SuperServer 1019D-12C-FRN5TP
In Stock
|
Call For Price
(0808 189 1246)
SPECIFICATIONS
Product Description
Supermicro SuperServer 1019D-12C-FRN5TP - rack-mountable
Type
Server - rack-mountable
Height (Rack Units)
1U
Server Scalability
1-way
Cache Memory
16.5 MB
Cache Per Processor
16.5 MB
Storage Controller
SATA (SATA 6Gb/s)
Server Storage Bays
Hot-swap 2.5"
Hard Drive
No HDD
Optical Storage
No optical drive
Networking
10 GigE
Power
AC 120/230 V (50 - 60 Hz)
Power Redundancy
Yes
OS Provided
No operating system
Color
Black
Dimensions (WxDxH)
17.2 in x 15 in x 1.7 in
Weight
15.9 lbs
General
Type
Server
Product Form Factor
Rack-mountable - 1U
Server Scalability
1-way
Internal Bays Qty
2
Hot-Swap Bays Qty
2
Color
Black
Processor / Chipset
CPU
Intel Xeon D-2163IT / 2.1 GHz
Max Turbo Speed
3 GHz
Number of Cores
12-core
CPU Qty
1
Cache Memory
Installed Size
16.5 MB
Cache Per Processor
16.5 MB
RAM
Installed Size
0 GB / 512 GB (max)
Technology
DDR4 SDRAM - ECC
Form Factor
DIMM 288-pin
Slots
4 (total) / 4 (empty)
Hard Drive
Type
No HDD
Storage Controller
Type
1 x SATA
Controller Interface Type
SATA 6Gb/s
Channel Qty
2
Optical Storage
Type
No optical drive
Monitor
Monitor Type
None.
Graphics Controller
Video Interfaces
VGA
Networking
Ethernet Ports
2 x 10 Gigabit Ethernet 2 x SFP+
Data Link Protocol
10 Gigabit Ethernet
Remote Management Protocol
IPMI 2.0
Features
KVM over IP support
Miscellaneous
Cables Included
Serial ATA cable (2 pcs.)
Compliant Standards
RoHS
Power
Device Type
Power supply
Power Redundancy
Yes
Power Redundancy Scheme
1+1
Installed Qty
2
Max Supported Qty
2
Voltage Required
AC 120/230 V (50 - 60 Hz)
Power Provided
400 Watt
80 PLUS Certification
80 PLUS Platinum
Operating System / Software
OS Provided
No operating system
Dimensions & Weight
Width
17.2 in
Depth
15 in
Height
1.7 in
Weight
15.9 lbs
Supermicro SuperServer 1019D-12C-FRN5TP
| Length | 15 cm |
| Width | 17.2 cm |
| Height | 1.7 cm |
| Weight | 1.000000 kgs |
