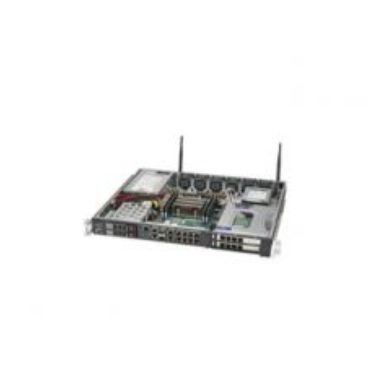

Supermicro SuperServer 1019D-16C-FHN13TP
In Stock
|
Call For Price
(0808 189 1246)
SPECIFICATIONS
Product Description
Supermicro SuperServer 1019D-16C-FHN13TP - rack-mountable
Type
Server - rack-mountable
Height (Rack Units)
1U
Server Scalability
1-way
Processor
1 x Intel Xeon D-2183IT (16-core)
Storage Controller
SATA (SATA 6Gb/s)
Server Storage Bays
Hot-swap 2.5"
Hard Drive
No HDD
Optical Storage
No optical drive
Graphics Controller
ASPEED AST2500
Networking
GigE 10 GigE
Power
AC 120/230 V (50 - 60 Hz)
OS Provided
No operating system
Color
Black
Dimensions (WxDxH)
17.2 in x 15 in x 1.7 in
Weight
14 lbs
General
Type
Server
Product Form Factor
Rack-mountable - 1U
Server Scalability
1-way
Internal Bays Qty
2
Hot-Swap Bays Qty
2
Color
Black
Processor / Chipset
CPU
Intel Xeon D-2183IT
Number of Cores
16-core
CPU Qty
1
Max CPU Qty
1
RAM
Installed Size
0 GB / 512 GB (max)
Technology
DDR4 SDRAM - ECC
Form Factor
DIMM 288-pin
Slots
4 (total) / 4 (empty)
Hard Drive
Type
No HDD
Storage Controller
Type
1 x SATA
Controller Interface Type
SATA 6Gb/s
Channel Qty
4
Optical Storage
Type
No optical drive
Monitor
Monitor Type
None.
Graphics Controller
Graphics Processor
ASPEED AST2500
Video Interfaces
VGA
Networking
Remote Management Protocol
IPMI 2.0
Features
KVM over IP support
Miscellaneous
Included Accessories
Air shroud riser card
Cables Included
Serial ATA cable (2 pcs.)
Compliant Standards
RoHS
Power
Device Type
Power supply
Voltage Required
AC 120/230 V (50 - 60 Hz)
Power Provided
350 Watt
80 PLUS Certification
80 PLUS Platinum
Power Factor Correction
Yes
Operating System / Software
OS Provided
No operating system
Dimensions & Weight
Width
17.2 in
Depth
15 in
Height
1.7 in
Weight
14 lbs
Supermicro SuperServer 1019D-16C-FHN13TP
| Length | 15 cm |
| Width | 17.2 cm |
| Height | 1.69 cm |
| Weight | 1.000000 kgs |
