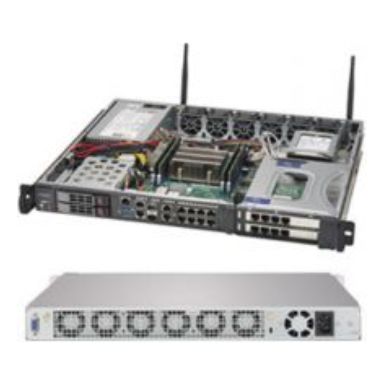

Supermicro SuperServer 1019D-FHN13TP
In Stock
|
Call For Price
(0808 189 1246)
Processor
Thermal Monitoring Technologies
Yes
Thermal Design Power (TDP)
80 W
Supported instruction sets
AVX 2.0
Stepping
M1
Scalability
1S
Processor threads
16
Processor operating modes
64-bit
Processor lithography
14 nm
Processor codename
Skylake
Processor code
SR3ZR
Memory types supported by processor
DDR4-SDRAM
Memory clock speeds supported by processor
2133 MHz
Maximum number of PCI Express lanes
32
Maximum internal memory supported by processor
512 GB
Idle States
Yes
Execute Disable Bit
Yes
Embedded options available
Yes
Bus type
UPI
Processor cache
11 MB
Conflict-Free processor
Yes
Processor frequency
2.3 GHz
Number of processors installed
1
Processor model
D-2146NT
Processor boost frequency
3 GHz
Processor socket
FCBGA2518
Processor cores
8
Processor manufacturer
Intel
Intelligent Platform Management Interface (IPMI) support
Yes
Processor family
Intel Xeon D
Memory
Memory slots
4
Maximum internal memory
512 GB
Internal memory type
DDR4-SDRAM
ECC
Yes
Storage
Optical drive type
No
Network
Ethernet LAN
Yes
Ethernet interface type
10 Gigabit Ethernet
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
VGA (D-Sub) ports quantity
1
Number of SATA III connectors
2
Expansion slots
PCI Express slots version
3
PCI Express x8 (Gen 3.x) slots
4
Optical drive
Optical drive type
No
Design
Rack mounting
Yes
Optical drive type
No
Chassis type
Rack (1U)
Product colour
Black
Performance
Operating system installed
No
BIOS type
AMI
Intelligent Platform Management Interface (IPMI) support
Yes
Software
Operating system installed
No
Power
Number of main power supplies
1
Power supply
350 W
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
8 - 90%
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
10 - 40 °C
Technical details
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Rack mounting
Yes
Intelligent Platform Management Interface (IPMI) support
Yes
CPU configuration (max)
1
BIOS type
AMI
Chassis type
Rack (1U)
PCI Express x8 (Gen 3.x) slots
4
Weight & dimensions
Width
17.2" (437 mm)
Weight
15.9 lbs (7.21 kg)
Height
1.69" (43 mm)
Depth
15" (381 mm)
Supermicro SuperServer 1019D-FHN13TP
| Length | 38.10 cm |
| Width | 43.70 cm |
| Height | 4.30 cm |
| Weight | 7.210000 kgs |
