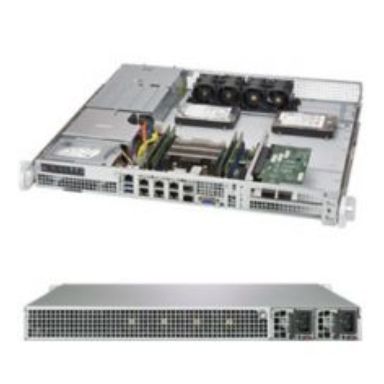

Supermicro SuperServer 1019D-FRN8TP
In Stock
|
Call For Price
(0808 189 1246)
SPECIFICATIONS
Product Description
Supermicro SuperServer 1019D-FRN8TP - rack-mountable
Type
Server - rack-mountable
Height (Rack Units)
1U
Server Scalability
1-way
Processor
1 x Intel Xeon D-2146NT (8-core)
Storage Controller
RAID (SATA 6Gb/s)
Hard Drive
No HDD
Optical Storage
No optical drive
Graphics Controller
ASPEED AST2500
Networking
GigE 10 GigE
Power Redundancy
Yes
OS Provided
No operating system
Color
Silver
Dimensions (WxDxH)
17.2 in x 16.9 in x 1.7 in
Weight
8 lbs
General
Type
Server
Product Form Factor
Rack-mountable - 1U
Server Scalability
1-way
Internal Bays Qty
4
Color
Silver
Processor / Chipset
CPU
Intel Xeon D-2146NT
Number of Cores
8-core
CPU Qty
1
Max CPU Qty
1
RAM
Installed Size
0 GB / 512 GB (max)
Technology
DDR4 SDRAM - ECC
Form Factor
DIMM 288-pin
Slots
4 (total) / 4 (empty)
Hard Drive
Type
No HDD
Storage Controller
Type
1 x RAID
Controller Interface Type
SATA 6Gb/s
Channel Qty
12
RAID Level
RAID 0 RAID 1 RAID 5 RAID 10
Optical Storage
Type
No optical drive
Monitor
Monitor Type
None.
Graphics Controller
Graphics Processor
ASPEED AST2500
Video Interfaces
VGA
Remote Management Protocol
IPMI 2.0
Features
KVM over IP support
Expansion / Connectivity
Bays
4 (total) / 4 (free) x internal 2.5"
Miscellaneous
Cables Included
Serial ATA cable (2 pcs.)
Compliant Standards
RoHS
Power
Device Type
Power supply
Power Redundancy
Yes
Power Redundancy Scheme
1+1
Installed Qty
2
Max Supported Qty
2
Power Provided
400 Watt
80 PLUS Certification
80 PLUS Platinum
Operating System / Software
OS Provided
No operating system
Dimensions & Weight
Width
17.2 in
Depth
16.9 in
Height
1.7 in
Weight
8 lbs
Supermicro SuperServer 1019D-FRN8TP
| Length | 26.75 cm |
| Width | 24 cm |
| Height | 7.75 cm |
| Weight | 1.000000 kgs |
