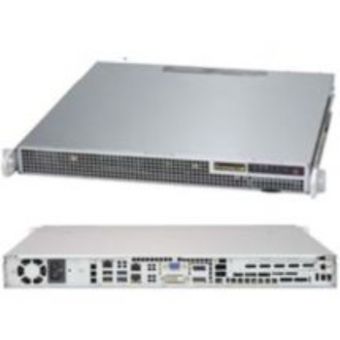

Supermicro SuperServer 1019S-M2

Product Description

Supermicro SuperServer 1019S-M2 - rack-mountable

Type

Server - rack-mountable

Height (Rack Units)

1U

Server Scalability

1-way

Processor

No CPU

Processor Socket

LGA1151 Socket

Storage Controller

RAID (SATA 6Gb/s)

Hard Drive

No HDD

Optical Storage

No optical drive

Graphics Controller

ASPEED AST2400

Networking

GigE

Power

AC 120/230 V (50 - 60 Hz)

Power Redundancy

Optional

OS Provided

No operating system

Color

Black

Dimensions (WxDxH)

17.2 in x 16.9 in x 1.7 in

Weight

17.64 lbs

Type

Server

Product Form Factor

Rack-mountable - 1U

Server Scalability

1-way

Internal Bays Qty

2

Color

Black

CPU

No CPU

Max CPU Qty

1

CPU Upgradability

Upgradable

CPU Socket

LGA1151 Socket

Chipset Type

Intel Q170

Installed Size

0 GB / 64 GB (max)

Technology

DDR4 SDRAM - non-ECC

Form Factor

DIMM 288-pin

Slots

4 (total) / 4 (empty)

Features

Unbuffered

Type

No HDD

Type

1 x RAID

Controller Interface Type

SATA 6Gb/s

Channel Qty

2

RAID Level

RAID 0 RAID 1

Type

No optical drive

Monitor Type

None.

Graphics Processor

ASPEED AST2400

Video Interfaces

VGA

Compliant Standards

High Definition Audio

Ethernet Ports

2 x Gigabit Ethernet

Ethernet Controller

Intel I219-LM I210-AT

Remote Management Protocol

IPMI 2.0

Features

KVM over IP support

Bays

2 (total) / 2 (free) x internal 2.5"

Included Accessories

CPU Heatsink

Compliant Standards

Plug and Play RoHS ACPI 5.0

Device Type

Power supply

Power Redundancy

Optional

Installed Qty

1

Max Supported Qty

2

Voltage Required

AC 120/230 V (50 - 60 Hz)

Power Provided

400 Watt

80 PLUS Certification

80 PLUS Platinum

OS Provided

No operating system

Width

17.2 in

Depth

16.9 in

Height

1.7 in

Weight

17.64 lbs
