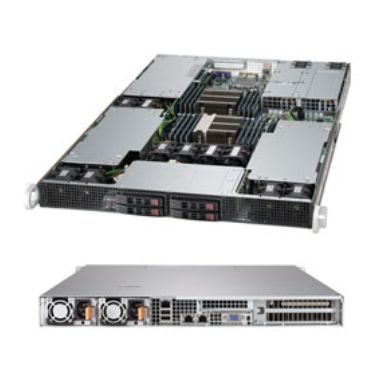

Supermicro SuperServer 1027GR-TR2
In Stock
|
Call For Price
(0808 189 1246)
Hard drive
RAID levels
0- 1- 5- 10
Hot-swap HDD bays
Yes
Processor
Built-in processor
No
Maximum cache
30 MB
System bus rate
8 GT/s
Processor socket
LGA 2011 (Socket R)
Number of processors supported
2
Motherboard chipset
Intel® C602
Compatible processor series
Intel® Xeon®
Memory
Supported UDIMM clock speeds
800-1066-1333-1600-1866 MHz
Supported RDIMM clock speeds
800-1066-1333-1600-1866 MHz
Supported memory types
DDR3-SDRAM
Supported DIMM module capacities
1GB- 2GB- 4GB- 8GB- 16GB- 32GB
Number of DIMM slots
16
Memory voltage
1.35-1.5 V
Memory form factor
240-pin DIMM
Maximum UDIMM memory
128 GB
Maximum RDIMM memory
512 GB
Maximum internal memory
1000 GB
ECC
Yes
Storage
Number of storage drives supported
72
RAID levels
0- 1- 5- 10
Hot-swap HDD bays
Yes
Storage drive sizes supported
3.5"
Network
Ethernet LAN data rates
10-100-1000 Mbit/s
Ethernet LAN
Yes
Ports & interfaces
Number of SATA III connectors
2
Number of SATA II connectors
4
VGA (D-Sub) ports quantity
1
USB 2.0 ports quantity
9
IPMI LAN (RJ-45) port
Yes
Ethernet LAN (RJ-45) ports
4
Number of SAS ports
8
Expansion slots
PCI Express x8 slots
4
PCI Express slots version
3
Features
Harmonized System (HS) code
84714100
Technical details
Number of storage drives supported
72
On/off switch
Yes
Number of fans
7 fan(s)
Fan diameter
9 cm
Redundant fans support
Yes
Chassis type
Rack (1U)
Harmonized System (HS) code
84714100
Sustainability certificates
RoHS
Colour
Product colour
Black
BIOS
BIOS type
AMI
BIOS memory size
16 Mbit
System Management BIOS (SMBIOS) version
2.3
Plug and Play
Yes
Design
On/off switch
Yes
Number of fans
7 fan(s)
Fan diameter
9 cm
Redundant fans support
Yes
Product colour
Black
Chassis type
Rack (1U)
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
DC output current (+5 V)
0.16666666666667
Number of redundant power supplies installed
1
Power supply
2000 W
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
10 - 35 °C
Operating relative humidity (H-H)
8 - 90%
Weight & dimensions
Width
437 mm
Weight
30.4 kg
Height
178 mm
Depth
889 mm
