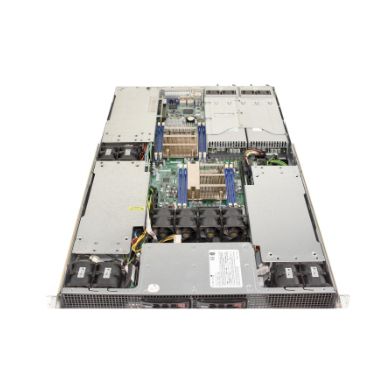

Supermicro SuperServer 1027GR-TRF
In Stock
|
$2255.97
$2707.16 (Inc. VAT)
Hard drive
RAID levels
0- 1- 5- 10
Hot-swap HDD bays
Yes
Optical drive
Optical drive type
No
Management features
PC health monitoring
CPU- Fan- LED- Temperature
Processor
System bus rate
8 GT/s
Processor socket
LGA 2011 (Socket R)
Processor family
Intel
Number of processors supported
2
Motherboard chipset
Intel® C602
Intel Xeon series
E5-2600
Compatible processor series
Intel® Xeon®
Motherboard southbridge
Intel ICH10R
Design
80 PLUS certification
80 PLUS Platinum
Product colour
Black
Chassis type
Rack (1U)
Memory
Supported UDIMM clock speeds
1066-1333-1600 MHz
Supported RDIMM clock speeds
1066-1333-1600 MHz
Supported memory types
DDR3-SDRAM
Number of DIMM slots
16
Non-ECC
Yes
Memory voltage
1.35-1.5 V
Memory form factor
240-pin DIMM
Maximum UDIMM memory
128 GB
Maximum RDIMM memory
512 GB
Maximum internal memory
512 GB
ECC
Yes
Storage
Number of storage drives supported
4
RAID levels
0- 1- 5- 10
Hot-swap HDD bays
Yes
Storage drive sizes supported
2.5"
Performance
Trusted Platform Module (TPM) version
1.2
Trusted Platform Module (TPM)
Yes
Optical drive type
No
Graphics
Maximum graphics card memory
16 MB
Network
LAN controller
Intel® I350
Ethernet LAN data rates
10-100-1000 Mbit/s
Ethernet LAN
Yes
Ports & interfaces
VGA (D-Sub) ports quantity
1
USB 2.0 ports quantity
2
Serial ports quantity
1
PS/2 ports quantity
1
Number of SATA connectors
4
IPMI LAN (RJ-45) port
Yes
Ethernet LAN (RJ-45) ports
2
Expansion slots
PCI Express x8 slots
1
PCI Express x16 slots
4
PCI Express slots version
3
Features
Trusted Platform Module (TPM) version
1.2
Trusted Platform Module (TPM)
Yes
Optical drive type
No
Harmonized System (HS) code
84714100
Technical details
Number of storage drives supported
4
Trusted Platform Module (TPM) version
1.2
Trusted Platform Module (TPM)
Yes
Number of products included
1 pc(s)
Chassis type
Rack (1U)
Harmonized System (HS) code
84714100
Colour
Product colour
Black
Indication
Power LED
Yes
Processor special features
BIOS
BIOS type
EFI AMI
BIOS memory size
16 Mbit
ACPI version
2
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Redundant power supply (RPS) support
Yes
Power supply
1800 W
Number of power supply units
2
80 PLUS certification
80 PLUS Platinum
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
10 - 35 °C
Operating relative humidity (H-H)
8 - 90%
Weight & dimensions
Width
437 mm
Weight
21.8 kg
Height
43 mm
Depth
777 mm
Supermicro SuperServer 1027GR-TRF
