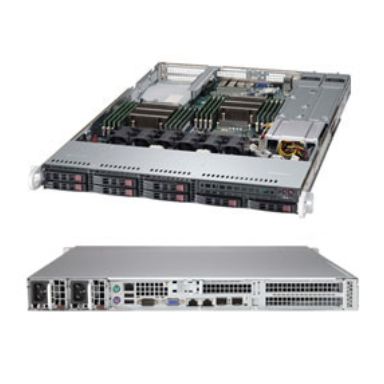

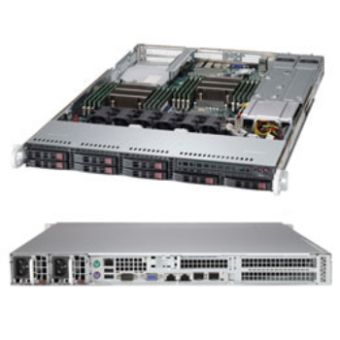

Supermicro SuperServer 1027R-72RFTP
In Stock
|
£1968.35
£2362.02 (Inc. VAT)
get it next day (UK Mainland Orders)
Supermicro SuperServer 1027R-72RFTP
Write Your Own Review
Hard drive
RAID levels
1-5-6-10-50-60
Hot-swap HDD bays
Yes
Optical drive
Optical drive type
No
Management features
Processor
System bus rate
8 GT/s
Processor socket
LGA 2011 (Socket R)
Processor family
Intel
Number of processors supported
2
Motherboard chipset
Intel® C602
Intel Xeon series
E5-2600
Compatible processor series
Intel® Xeon®
Motherboard southbridge
Intel ICH10R
Design
80 PLUS certification
80 PLUS Gold
LED indicators
HDD- LAN- Power- Status
Product colour
Black
Chassis type
Rack (1U)
Memory
Supported memory types
DDR3-SDRAM
Number of DIMM slots
16
Non-ECC
Yes
Memory voltage
1.35-1.5 V
Memory form factor
240-pin DIMM
Maximum UDIMM memory
128 GB
Maximum RDIMM memory
512 GB
Maximum internal memory
512 GB
ECC
Yes
Storage
Number of storage drives supported
8
RAID levels
1-5-6-10-50-60
Hot-swap HDD bays
Yes
Storage drive sizes supported
2.5"
Performance
Trusted Platform Module (TPM) version
1.2
Trusted Platform Module (TPM)
Yes
Optical drive type
No
Graphics
Maximum graphics adapter memory
16 MB
Network
Ethernet LAN
Yes
Ports & interfaces
VGA (D-Sub) ports quantity
1
USB 2.0 ports quantity
5
Serial ports quantity
1
Number of SATA connectors
10
IPMI LAN (RJ-45) port
Yes
Ethernet LAN (RJ-45) ports
2
Number of SAS ports
8
Expansion slots
PCI Express x8 slots
1
PCI Express x16 slots
2
PCI Express slots version
3
Features
Trusted Platform Module (TPM) version
1.2
Trusted Platform Module (TPM)
Yes
Optical drive type
No
Technical details
Number of storage drives supported
8
Trusted Platform Module (TPM) version
1.2
Trusted Platform Module (TPM)
Yes
Number of products included
1 pc(s)
Chassis type
Rack (1U)
Colour
Product colour
Black
Indication
Power LED
Yes
Processor special features
BIOS
BIOS type
EFI AMI
BIOS memory size
16 Mbit
ACPI version
2
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Redundant power supply (RPS) support
Yes
Power supply
750 W
Number of power supply units
2
80 PLUS certification
80 PLUS Gold
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
10 - 35 °C
Operating relative humidity (H-H)
8 - 90%
Weight & dimensions
Width
437 mm
Weight
20.9 kg
Height
43 mm
Depth
676 mm
| Length | 67.60 cm |
| Width | 43.70 cm |
| Height | 4.30 cm |
| Weight | 20.90 kgs |
