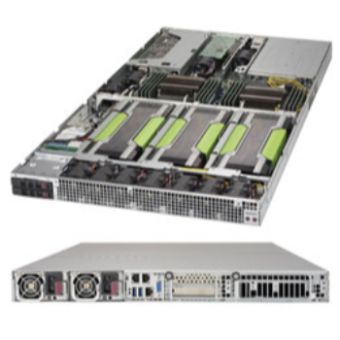

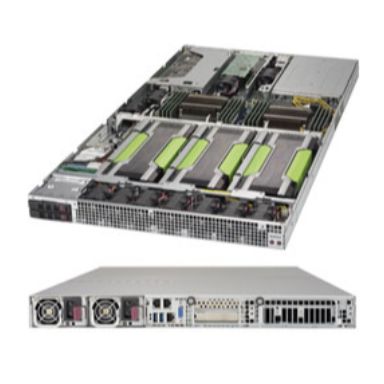

Supermicro SuperServer 1028GQ-TRT
In Stock
|
Call For Price
(0808 189 1246)
Hard drive
RAID levels
0-1-5-10
Hot-swap HDD bays
Yes
Management features
PC health monitoring
CPU- Fan- LED- Temperature
Intelligent Platform Management Interface (IPMI) support
Yes
Processor
System bus type
QuickPath Interconnect (QPI)
Maximum cache
45 MB
System bus rate
9.6 GT/s
Processor socket
LGA 2011 (Socket R)
Processor family
Intel
Number of processors supported
2
Motherboard chipset
Intel® C612
Intel Xeon series
E5-2600
Compatible processor series
Intel® Xeon®
Memory
Memory bus
72 bit
Supported RDIMM clock speeds
1600-1866-2133 MHz
Supported memory types
DDR4-SDRAM
Supported DIMM module capacities
4GB- 8GB- 16GB- 32GB- 64GB
Number of DIMM slots
16
Memory voltage
1.2 V
Memory form factor
288-pin DIMM
Maximum RDIMM memory
512 GB
Maximum internal memory
1000 GB
ECC
Yes
Storage
Number of storage drives supported
4
Supported storage drive interfaces
Serial ATA III
RAID levels
0-1-5-10
Hot-swap HDD bays
Yes
Storage drive sizes supported
2.5"
Performance
PC health monitoring
CPU- Fan- LED- Temperature
Intelligent Platform Management Interface (IPMI) support
Yes
Integrated BMC with IPMI
Yes
Graphics
On-board graphics adapter model
Aspeed AST2400
Network
Ethernet LAN data rates
10-100-1000 Mbit/s
Ethernet LAN
Yes
Copper ethernet cabling technology
10GBASE-T-100BASE-TX-1000BASE-T
Ethernet interface type
Fast Ethernet- Gigabit Ethernet
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
Number of SATA III connectors
4
VGA (D-Sub) ports quantity
1
Serial ports quantity
1
IPMI LAN (RJ-45) port
Yes
Ethernet LAN (RJ-45) ports
2
Expansion slots
PCI Express x8 slots
2
PCI Express x16 slots
4
PCI Express slots version
3.0
Features
PC health monitoring
CPU- Fan- LED- Temperature
Integrated BMC with IPMI
Yes
Technical details
Number of storage drives supported
4
On/off switch
Yes
Number of fans
9 fan(s)
Fan diameter
4 cm
Certification
80 PLUS Platinum
Rack-Friendly board
Yes
Integrated BMC with IPMI
Yes
Chassis type
Rack (1U)
Sustainability certificates
RoHS
Colour
Product colour
Black
Indication
LED indicators
Fan fail- HDD- Network- Power fail
Processor special features
Intelligent Platform Management Interface (IPMI) support
Yes
BIOS
BIOS features
APM 1.2-Plug & Play-UEFI
BIOS type
AMI
BIOS memory size
16 Mbit
ACPI version
3.0
Design
On/off switch
Yes
Number of fans
9 fan(s)
Fan diameter
4 cm
Certification
80 PLUS Platinum
Rack-Friendly board
Yes
LED indicators
Fan fail- HDD- Network- Power fail
Product colour
Black
Chassis type
Rack (1U)
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Input current
10 - 12.5 A
DC output current (+12 V)
166.7 A
Number of redundant power supplies installed
1
Redundant power supply (RPS) support
Yes
Power supply
2000 W
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
10 - 35 °C
Operating relative humidity (H-H)
8 - 90%
Weight & dimensions
Width
437 mm
Weight
15.9 kg
Height
43 mm
Depth
894 mm
Packaging data
Keyboard included
Yes
Packaging content
Keyboard included
Yes
Supermicro SuperServer 1028GQ-TRT
| Length | 89.40 cm |
| Width | 43.70 cm |
| Height | 4.30 cm |
| Weight | 15.900000 kgs |
