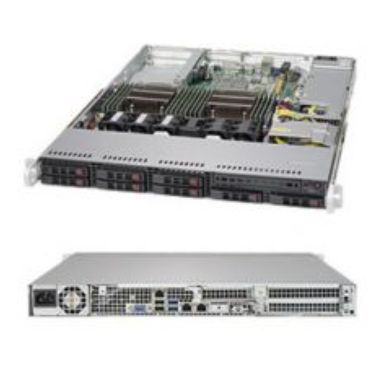

Supermicro SuperServer 1028R-TDW
In Stock
|
Call For Price
(0808 189 1246)
SPECIFICATIONS
Product Description
Supermicro SuperServer 1028R-TDW - rack-mountable
Type
Server - rack-mountable - UEFI BIOS
Height (Rack Units)
1U
Server Scalability
2-way
Processor
No CPU
Processor Socket
LGA2011-v3 Socket
Storage Controller
SATA (SATA 6Gb/s)
Server Storage Bays
Hot-swap 2.5"
Hard Drive
No HDD
Optical Storage
No optical drive
Graphics Controller
ASPEED AST2400
Networking
GigE
Power
AC 120/230 V (50/60 Hz)
Color
Black
Dimensions (WxDxH)
17.2 in x 25.6 in x 1.7 in
General
Type
Server
Product Form Factor
Rack-mountable - 1U
Server Scalability
2-way
Hot-Swap Bays Qty
8
Color
Black
Processor / Chipset
CPU
No CPU
Max CPU Qty
2
CPU Upgradability
Upgradable
CPU Socket
LGA2011-v3 Socket
Chipset Type
Intel C612
RAM
Installed Size
0 GB / 1 TB (max)
Technology
DDR4 SDRAM
Form Factor
DIMM 288-pin
Slots
16 (total) / 16 (empty)
Hard Drive
Type
No HDD
Storage Controller
Type
1 x SATA - integrated
Controller Interface Type
SATA 6Gb/s
Channel Qty
8
RAID Level
RAID 0 RAID 1 RAID 5 RAID 10
Optical Storage
Type
No optical drive
Monitor
Monitor Type
None.
Graphics Controller
Type
Integrated
Graphics Processor
ASPEED AST2400
Video Interfaces
VGA
Networking
Type
Integrated
Ethernet Ports
2 x Gigabit Ethernet
Ethernet Controller
Intel I350
Remote Management Protocol
IPMI 2.0
Features
KVM over IP support
Expansion / Connectivity
Bays
8 (total) / 8 (free) x hot-swap 2.5"
Miscellaneous
Included Accessories
2 x CPU Heatsink air shroud 2 x riser cards
Cables Included
Serial ATA / SAS cable (2 pcs.)
Features
UEFI BIOS
Compliant Standards
Plug and Play APM 1.2 RoHS ACPI 4.0
Power
Device Type
Power supply
Voltage Required
AC 120/230 V (50/60 Hz)
Power Provided
600 Watt
80 PLUS Certification
80 PLUS Platinum
Dimensions & Weight
Width
17.2 in
Depth
25.6 in
Height
1.7 in
Supermicro SuperServer 1028R-TDW
| Length | 24.5 cm |
| Width | 33 cm |
| Height | 8.7 cm |
| Weight | 1.000000 kgs |
