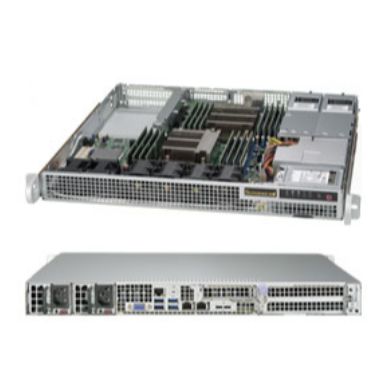

Supermicro SuperServer 1028R-WMR
In Stock
|
Call For Price
(0808 189 1246)
Hard drive
RAID levels
01510
Hot-swap HDD bays
No
Processor
Maximum cache
45 MB
System bus rate
9.6 GT/s
Processor socket
LGA 2011 (Socket R)
Processor family
Intel
Number of processors supported
2
Motherboard chipset
Intel C612
Intel Xeon series
E5-2600
Compatible processor series
Intel Xeon
Memory
Memory bus
72 bit
Supported RDIMM clock speeds
160018662133 MHz
Supported memory types
DDR4-SDRAM
Number of DIMM slots
16
Memory voltage
1.2 V
Memory form factor
288-pin DIMM
Maximum RDIMM memory
512 GB
Maximum internal memory
1000 GB
ECC
Yes
Storage
Number of storage drives supported
10
Supported storage drive interfaces
Serial ATA III
RAID levels
01510
Hot-swap HDD bays
No
Storage drive sizes supported
2.5"
Performance
Integrated BMC with IPMI
Yes
Backplanes support
Yes
Graphics
On-board graphics adapter model
Aspeed AST2400
Network
LAN controller
Intel I350 Realtek RTL8211E
Ethernet LAN data rates
101001000 Mbit/s
Ethernet LAN
Yes
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
Number of SATA III connectors
10
VGA (D-Sub) ports quantity
1
USB 2.0 ports quantity
4
Serial ports quantity
1
IPMI LAN (RJ-45) port
Yes
Ethernet LAN (RJ-45) ports
2
Expansion slots
PCI Express x16 slots
2
PCI Express slots version
3
Features
Integrated BMC with IPMI
Yes
Backplanes support
Yes
Technical details
Number of storage drives supported
10
On/off switch
Yes
Number of fans
6 fan(s)
Fan diameter
1.57" (4 cm)
Rack-Friendly board
Yes
Integrated BMC with IPMI
Yes
Chassis type
Rack (1U)
Backplanes support
Yes
Sustainability certificates
RoHS
Colour
Product colour
Gray
Design
On/off switch
Yes
Number of fans
6 fan(s)
Fan diameter
1.57" (4 cm)
Rack-Friendly board
Yes
LED indicators
HDD Network Power
Product colour
Gray
Chassis type
Rack (1U)
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Input current
3 - 6 A
DC output current (+5 V)
25 A
DC output current (+12 V)
33 A
Redundant power supply (RPS) support
Yes
Power supply
400 W
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
10 - 35 °C
Operating relative humidity (H-H)
8 - 90%
Weight & dimensions
Width
17.2" (437 mm)
Weight
16.5 lbs (7.48 kg)
Height
1.69" (43 mm)
Depth
16.9" (429 mm)
Supermicro SuperServer 1028R-WMR
| Length | 42.90 cm |
| Width | 43.70 cm |
| Height | 4.30 cm |
| Weight | 7.480000 kgs |
