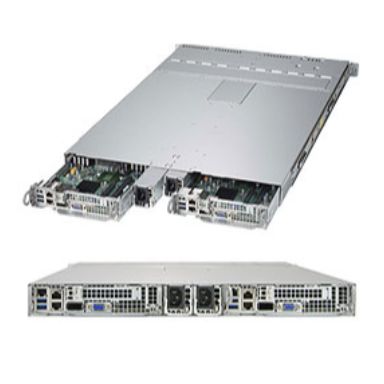

Supermicro SuperServer 1028TP-DC1FR
In Stock
|
$5224.82
$6269.78 (Inc. VAT)
Hard drive
RAID levels
0-1-5-6-10
Hot-swap HDD bays
Yes
Management features
Intelligent Platform Management Interface (IPMI) support
Yes
Processor
Maximum cache
45 MB
Processor socket
LGA 2011 (Socket R)
Processor family
Intel
Number of processors supported
2
Motherboard chipset
Intel® C612
Intel Xeon series
E5-2600
Compatible processor series
Intel® Xeon®
Memory
Memory bus
72 bit
Supported memory types
DDR4-SDRAM
Supported DIMM module capacities
4GB- 8GB- 16GB- 32GB- 64GB
Number of DIMM slots
16
Memory voltage
1.2 V
Memory form factor
288-pin DIMM
Maximum RDIMM memory
512 GB
Maximum internal memory
1024 GB
ECC
Yes
Storage
Number of storage drives supported
4
Supported storage drive interfaces
Serial ATA III
RAID levels
0-1-5-6-10
Hot-swap HDD bays
Yes
Storage drive sizes supported
2.5"
Performance
Intelligent Platform Management Interface (IPMI) support
Yes
Graphics
On-board graphics adapter model
Aspeed AST2400
Network
LAN controller
Intel® I350
Ethernet LAN data rates
10-100-1000 Mbit/s
Ethernet LAN
Yes
Copper ethernet cabling technology
10GBASE-T-100BASE-T-1000BASE-T
Ethernet interface type
Fast Ethernet- Gigabit Ethernet
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
Number of SATA III connectors
4
VGA (D-Sub) ports quantity
1
Serial ports quantity
2
IPMI LAN (RJ-45) port
Yes
Expansion slots
PCI slots
1
PCI Express x16 slots
1
Technical details
Number of storage drives supported
4
On/off switch
Yes
Number of fans
3 fan(s)
Chassis type
Rack (1U)
Sustainability certificates
RoHS
Colour
Product colour
Black
Indication
LED indicators
Yes
Processor special features
Intelligent Platform Management Interface (IPMI) support
Yes
BIOS
BIOS features
APM 1.2-PCI 2.2-Plug & Play-SMBIOS 2.3-UEFI
BIOS type
AMI
BIOS memory size
16 Mbit
ACPI version
2.0
Design
On/off switch
Yes
Number of fans
3 fan(s)
LED indicators
Yes
Product colour
Black
Chassis type
Rack (1U)
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Input current
9 A
Power supply
1000 W
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
10 - 35 °C
Operating relative humidity (H-H)
8 - 90%
Weight & dimensions
Width
437 mm
Height
43 mm
Depth
730 mm
Supermicro SuperServer 1028TP-DC1FR
| Length | 28.7 cm |
| Width | 17.2 cm |
| Height | 1.7 cm |
| Weight | 1.000000 kgs |
