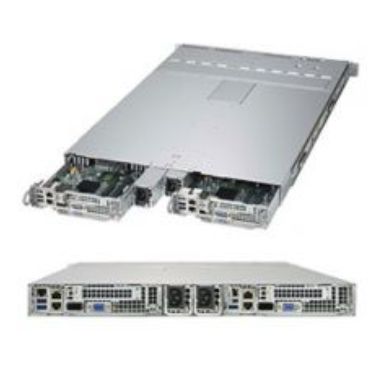

Supermicro SuperServer 1028TP-DTR
In Stock
|
Call For Price
(0808 189 1246)
Hard drive
RAID levels
01510
Hot-swap HDD bays
Yes
Processor
Maximum cache
45 MB
System bus rate
9.6 GT/s
Processor socket
LGA 2011-v3
Processor family
Intel
Number of processors supported
2
Motherboard chipset
Intel C612
Compatible processor series
Intel Xeon
Memory
Memory bus
72 bit
Supported memory types
DDR4-SDRAM
Supported DIMM module capacities
4GB 8GB 16GB 32GB 64GB
Number of DIMM slots
16
Memory voltage
1.2 V
Memory form factor
288-pin DIMM
Maximum RDIMM memory
512 GB
Maximum internal memory
1000 GB
ECC
Yes
Storage
Number of storage drives supported
4
Supported storage drive interfaces
Serial ATA III
RAID levels
01510
Hot-swap HDD bays
Yes
Storage drive sizes supported
2.5"
Graphics
On-board graphics adapter model
Aspeed AST2400
Network
LAN controller
Intel I350
Ethernet LAN data rates
101001000 Mbit/s
Ethernet LAN
Yes
Ports & interfaces
Number of SATA III connectors
4
VGA (D-Sub) ports quantity
1
USB 2.0 ports quantity
2
Serial ports quantity
2
IPMI LAN (RJ-45) port
Yes
Ethernet LAN (RJ-45) ports
2
Expansion slots
PCI slots
1
PCI Express x16 slots
1
Technical details
Number of storage drives supported
4
On/off switch
Yes
Chassis type
Rack (1U)
Sustainability certificates
RoHS
Colour
Product colour
Black
Indication
LED indicators
Yes
Design
On/off switch
Yes
LED indicators
Yes
Product colour
Black
Chassis type
Rack (1U)
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Input current
0.375
Power supply
1000 W
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
10 - 35 °C
Operating relative humidity (H-H)
8 - 90%
Weight & dimensions
Width
17.2" (437 mm)
Height
1.69" (43 mm)
Depth
28.7" (730 mm)
Supermicro SuperServer 1028TP-DTR
| Length | 38 cm |
| Width | 29 cm |
| Height | 8 cm |
| Weight | 1.000000 kgs |
