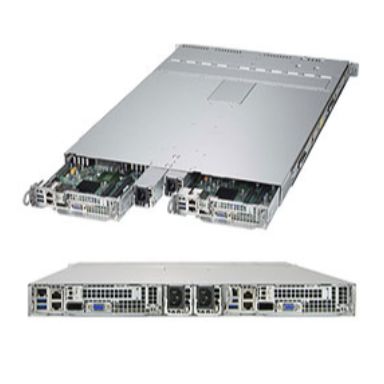

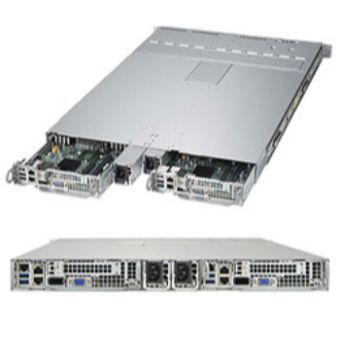

Supermicro SuperServer 1028TP-DTTR
0 Reviews
| Add your review
In Stock
|
£2650.52
£3180.62 (Inc. VAT)
| Hard drive | |
|---|---|
| RAID levels | 0-1-5-10 |
| Hot-swap HDD bays | Yes |
| Processor | |
| Built-in processor | No |
| Maximum cache | 55 MB |
| System bus rate | 9.6 GT/s |
| Processor socket | LGA 2011 (Socket R) |
| Number of processors supported | 2 |
| Motherboard chipset | Intel® C612 |
| Intel Xeon series | E5-2600 |
| Compatible processor series | Intel® Xeon® |
| Memory | |
| Memory bus | 72 bit |
| Supported RDIMM clock speeds | 1600-1866-2133-2400 MHz |
| Supported memory types | DDR4-SDRAM |
| Supported DIMM module capacities | 4GB- 8GB- 16GB- 32GB- 64GB |
| Number of DIMM slots | 16 |
| Memory voltage | 1.2 V |
| Memory form factor | 288-pin DIMM |
| Maximum RDIMM memory | 512 GB |
| Maximum internal memory | 2000 GB |
| ECC | Yes |
| Storage | |
| Number of storage drives supported | 4 |
| Number of 2.5" bays | 4 |
| Supported storage drive interfaces | Serial ATA III |
| RAID levels | 0-1-5-10 |
| Hot-swap HDD bays | Yes |
| Storage drive sizes supported | 2.5" |
| Graphics | |
| On-board graphics adapter model | Aspeed AST2400 |
| Network | |
| LAN controller | Intel® X540- Realtek RTL8201N |
| Ethernet LAN data rates | 100-1000-100000 Mbit/s |
| Ethernet LAN | Yes |
| Copper ethernet cabling technology | 10GBASE-T-100BASE-TX-1000BASE-T |
| Ethernet interface type | 100 Gigabit Ethernet- Fast Ethernet- Gigabit Ethernet |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Number of SATA III connectors | 4 |
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 1 |
| IPMI LAN (RJ-45) port | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Expansion slots | |
| PCI Express x16 slots | 1 |
| PCI Express slots version | 3.0 |
| Technical details | |
| Number of storage drives supported | 4 |
| Number of 2.5" bays | 4 |
| On/off switch | Yes |
| Number of fans | 3 fan(s) |
| Certification | UL/cUL/CB/BSMI/CE/CCC |
| Chassis type | Rack (1U) |
| Sustainability certificates | RoHS |
| Colour | |
| Product colour | Black |
| Indication | |
| LED indicators | Network- Power |
| BIOS | |
| BIOS features | APM 1.2-PCI 2.2-Plug & Play-SMBIOS 2.3-UEFI |
| BIOS type | AMI |
| BIOS memory size | 128 Mbit |
| ACPI version | 2.0 |
| Design | |
| On/off switch | Yes |
| Number of fans | 3 fan(s) |
| Certification | UL/cUL/CB/BSMI/CE/CCC |
| LED indicators | Network- Power |
| Product colour | Black |
| Chassis type | Rack (1U) |
| Power | |
| Number of redundant power supplies installed | 2 |
| Redundant power supply (RPS) support | Yes |
| Power supply | 1000 W |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 8 - 90% |
| Weight & dimensions | |
| Width | 437 mm |
| Weight | 15.2 kg |
| Height | 43 mm |
| Depth | 718 mm |
| Package weight | 21.9 kg |
| Packaging data | |
| Package weight | 21.9 kg |
Supermicro SuperServer 1028TP-DTTR
| Length | 38 cm |
| Width | 29.2 cm |
| Height | 7.95 cm |
| Weight | 1.000000 kgs |
