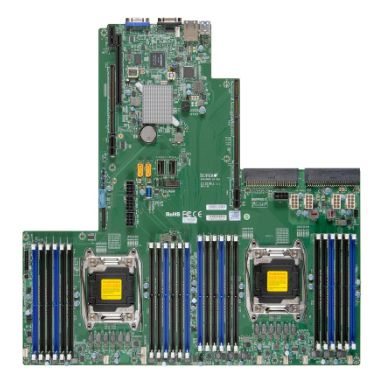

Supermicro Superserver 1028U-TN10RT+
In Stock
|
Call For Price
(0808 189 1246)
Hard drive
RAID levels
0-1-5-10
Hot-swap HDD bays
Yes
Management features
Intelligent Platform Management Interface (IPMI) support
Yes
Processor
Maximum cache
45 MB
System bus rate
9.6 GT/s
Processor socket
LGA 2011 (Socket R)
Processor family
Intel
Number of processors supported
2
Motherboard chipset
Intel® C612
Intel Xeon series
E5-2600
Compatible processor series
Intel® Xeon®
Memory
Memory bus
72 bit
Supported RDIMM clock speeds
1600-1866-2133 MHz
Supported memory types
DDR4-SDRAM
Number of DIMM slots
24
Memory voltage
1.2 V
Memory form factor
288-pin DIMM
Maximum RDIMM memory
1500 GB
Maximum internal memory
1500 GB
ECC
Yes
Storage
Number of storage drives supported
10
RAID levels
0-1-5-10
Hot-swap HDD bays
Yes
Storage drive sizes supported
2.5"
Performance
Intelligent Platform Management Interface (IPMI) support
Yes
Integrated BMC with IPMI
Yes
Backplanes support
Yes
Graphics
On-board graphics adapter model
Aspeed AST2400
Network
Ethernet LAN data rates
10-100-1000 Mbit/s
Ethernet LAN
Yes
Copper ethernet cabling technology
10GBASE-T
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
5
Number of SATA III connectors
6
VGA (D-Sub) ports quantity
1
Serial ports quantity
1
IPMI LAN (RJ-45) port
Yes
Ethernet LAN (RJ-45) ports
2
Number of SAS ports
4
Expansion slots
PCI Express x8 slots
3
PCI Express slots version
3
Features
Integrated BMC with IPMI
Yes
Backplanes support
Yes
Technical details
Number of storage drives supported
10
On/off switch
Yes
Number of fans
8 fan(s)
Certification
80 PLUS Titanium
Rack-Friendly board
Yes
Integrated BMC with IPMI
Yes
Chassis type
Rack (1U)
Backplanes support
Yes
Sustainability certificates
RoHS
Colour
Product colour
Black
Processor special features
Intelligent Platform Management Interface (IPMI) support
Yes
BIOS
BIOS type
AMI
BIOS memory size
16 Mbit
ACPI version
4
Design
On/off switch
Yes
Number of fans
8 fan(s)
Certification
80 PLUS Titanium
Rack-Friendly board
Yes
Product colour
Black
Chassis type
Rack (1U)
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
DC output current (+12 V)
83 A
Number of redundant power supplies installed
1
Redundant power supply (RPS) support
Yes
Power supply
1000 W
Operational conditions
Storage temperature (T-T)
-40 - 60 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
10 - 35 °C
Operating relative humidity (H-H)
8 - 90%
Weight & dimensions
Width
437 mm
Height
43 mm
Depth
707 mm
Supermicro Superserver 1028U-TN10RT+
