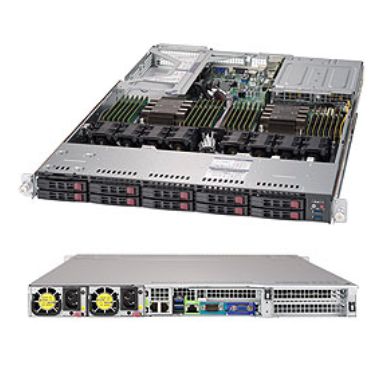

Supermicro SuperServer 1029U-E1CRT
In Stock
|
Call For Price
(0808 189 1246)
Hard drive
RAID levels
0- 1- 5- 10
Hot-swap HDD bays
Yes
Management features
Processor
Built-in processor
No
System bus rate
10.4 GT/s
Processor socket
LGA 3647 (Socket P)
Processor family
Intel® Xeon®
Number of processors supported
2
Motherboard chipset
Intel® C621
Compatible processor series
Intel® Xeon®
Design
80 PLUS certification
80 PLUS Platinum
On/off switch
Yes
Number of fans
8 fan(s)
LED indicators
Yes
Product colour
Black
Chassis type
Rack (1U)
Memory
Supported RDIMM clock speeds
2133-2400-2666 MHz
Supported memory types
DDR4-SDRAM
Number of DIMM slots
24
Memory voltage
1.2 V
Maximum RDIMM memory
3072 GB
Maximum internal memory
3072 GB
ECC
Yes
Storage
Number of storage drives supported
10
Number of 2.5" bays
10
RAID levels
0- 1- 5- 10
Hot-swap HDD bays
Yes
Storage drive sizes supported
2.5"
Performance
Graphics
On-board graphics card model
Aspeed AST2500
Network
LAN controller
Intel® X540
Ethernet LAN data rates
10000 Mbit/s
Ethernet LAN
Yes
Ethernet interface type
10 Gigabit Ethernet
Ports & interfaces
VGA (D-Sub) ports quantity
2
Serial ports quantity
1
IPMI LAN (RJ-45) port
Yes
Ethernet LAN (RJ-45) ports
3
Number of SAS ports
10
Expansion slots
PCI Express x8 (Gen 3.x) slots
2
PCI Express x16 (Gen 3.x) slots
2
Features
Harmonized System (HS) code
84714100
Technical details
PCI Express x8 (Gen 3.x) slots
2
PCI Express x16 (Gen 3.x) slots
2
Number of storage drives supported
10
Number of 2.5" bays
10
On/off switch
Yes
Number of fans
8 fan(s)
Chassis type
Rack (1U)
Harmonized System (HS) code
84714100
Sustainability certificates
RoHS
Colour
Product colour
Black
Indication
LED indicators
Yes
Processor special features
BIOS
BIOS type
AMI
BIOS memory size
32 Mbit
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
DC output current (+12 V)
62.5 A
Redundant power supply (RPS) support
Yes
Power supply
750 W
80 PLUS certification
80 PLUS Platinum
Operational conditions
Storage temperature (T-T)
-40 - 60 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
10 - 35 °C
Operating relative humidity (H-H)
8 - 90%
Weight & dimensions
Width
437 mm
Weight
11.8 kg
Height
43 mm
Depth
707 mm
Package weight
18.6 kg
