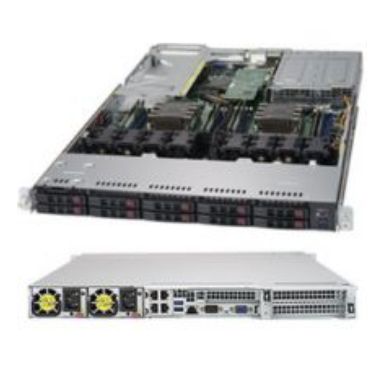

Supermicro SuperServer 1029UX-LL1-S16 - Complete System
In Stock
|
Call For Price
(0808 189 1246)
Hard drive
Hot-swap HDD bays
Yes
Processor
Built-in processor
No
System bus rate
10.4 GT/s
Processor socket
LGA 3647 (Socket P)
Number of processors supported
2
Motherboard chipset
Intel C621
Compatible processor series
Intel Xeon
Design
80 PLUS certification
80 PLUS Platinum
Reset button
Yes
On/off switch
Yes
Number of fans
8 fan(s)
LED indicators
Fan fail HDD LAN Power
Product colour
Black
Chassis type
Rack (1U)
Memory
Supported RDIMM clock speeds
213324002666 MHz
Supported memory types
DDR4-SDRAM
Number of DIMM slots
16
Maximum RDIMM memory
2000 GB
Maximum internal memory
2000 GB
ECC
Yes
Storage
Number of storage drives supported
10
Hot-swap HDD bays
Yes
Storage drive sizes supported
2.5"
Supported storage drive types
HDD & SSD
Performance
PC health monitoring
CPU Fan Temperature
Graphics
On-board graphics adapter model
Aspeed AST2500
Network
LAN controller
Intel I350-AM4
Ethernet LAN data rates
1000 Mbit/s
Ethernet LAN
Yes
Ethernet interface type
Gigabit Ethernet
Ports & interfaces
VGA (D-Sub) ports quantity
1
IPMI LAN (RJ-45) port
Yes
Ethernet LAN (RJ-45) ports
4
COM ports quantity
1
Expansion slots
PCI Express x8 (Gen 3.x) slots
2
PCI Express x16 (Gen 3.x) slots
2
Technical details
PCI Express x8 (Gen 3.x) slots
2
PCI Express x16 (Gen 3.x) slots
2
Number of storage drives supported
10
Reset button
Yes
On/off switch
Yes
Number of fans
8 fan(s)
Chassis type
Rack (1U)
Sustainability certificates
RoHS
Colour
Product colour
Black
BIOS
BIOS type
UEFI AMI
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
DC output current (+12 V)
62.5 A
Redundant power supply (RPS) support
Yes
Power supply
750 W
80 PLUS certification
80 PLUS Platinum
Operational conditions
Storage temperature (T-T)
-40 - 60 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
10 - 35 °C
Operating relative humidity (H-H)
8 - 90%
Weight & dimensions
Width
17.2" (437 mm)
Weight
48.1 lbs (21.8 kg)
Height
1.69" (43 mm)
Depth
28.5" (724 mm)
Supermicro SuperServer 1029UX-LL1-S16 - Complete System
| Length | 72.40 cm |
| Width | 43.70 cm |
| Height | 4.30 cm |
| Weight | 21.820000 kgs |
